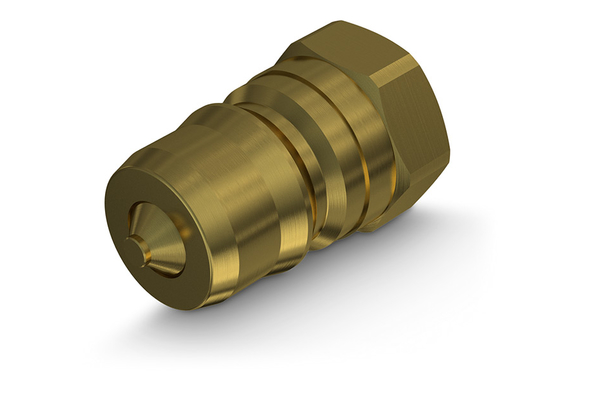

HNV brass male coupling

Similar image
Similar image

Standard couplings for industrial applications, ISO 7241-1B interchange, brass versions

To accessories

Detail

Art. No.
HNV 18 GAS M 5
%
SALE
HNV 18 GAS M 5V
%
SALE
HNV 18 NPT M 5
%
SALE
HNV 14 GAS M 5
%
SALE
HNV 14 GAS M 5V
%
SALE
HNV 14 NPT M 5
%
SALE
HNV 14 NPT M 5V
%
SALE
HNV 38 GAS M 5
%
SALE
HNV 38 GAS M 5V
%
SALE
HNV 38 NPT M 5
%
SALE
HNV 12 GAS M 5
%
SALE
HNV 12 GAS M 5V
%
SALE
HNV 12 NPT M 5
%
SALE
HNV 12 NPT M 5V
%
SALE
HNV 34 GAS M 5
%
SALE
HNV 34 GAS M 5V
%
SALE
HNV 34 NPT M 5
%
SALE
HNV 1 GAS M 5
%
SALE
HNV 1 GAS M 5V
%
SALE
HNV112 GAS M 5
%
SALE
HNV112 GAS M 5V
%
SALE
Size
1
1
1
1
2
2
3
3
3
4
4
4
6
6
8
8
DN
05
05
05
06
06
06
06
10
10
10
12
12
12
12
20
20
20
25
25
38
38
Size
02
02
02
04
04
04
04
06
06
06
08
08
08
08
12
12
12
16
16
24
24
Inch
1/8
1/8
1/8
1/4
1/4
1/4
1/4
3/8
3/8
3/8
1/2
1/2
1/2
1/2
3/4
3/4
3/4
1
1
1.1/2
1.1/2
working pressure [bar]
220
220
220
200
200
200
200
150
150
150
170
170
170
170
100
100
100
140
140
70
70
Thread + standard
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT Innengewinde ANSI B1.20.3
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP Innengewinde ISO 1179-1
BSP female-thread ISO 1179-1
Thread [GA]
1/8
1/8
1/8
1/4
1/4
1/4
1/4
3/8
3/8
3/8
1/2
1/2
1/2
1/2
3/4
3/4
3/4
1
1
1.1/2
1.1/2

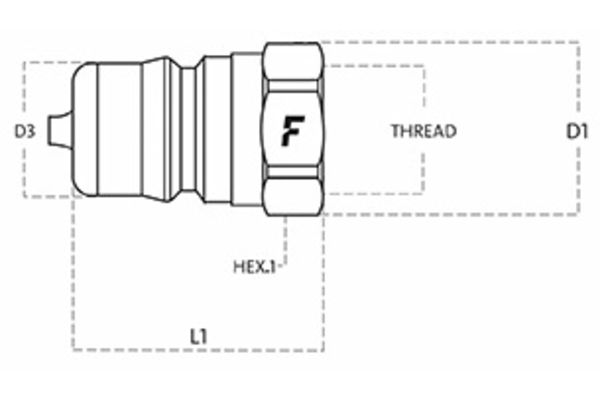

Outer Ø plug [mm]
10,8
10,8
10,8
14,1
14,1
14,1
14,1
19,0
19,0
19,0
23,5
23,5
23,5
23,5
31,5
31,5
31,5
37,8
37,8
44,5
44,5
Length plug [mm]
31,5
31,5
31,5
35,0
35,0
35,0
35,0
39,0
39,0
39,0
44,0
44,0
44,0
44,0
55,0
55,0
55,0
66,0
66,0
123,5
123,5
SW1 [mm]
18
18
16
19
19
19
19
24
22
22
27
27
27
27
34
34
34
41
41
65
65
l/min at ΔP=2 bar
6
6
6
16
16
16
16
25
25
25
60
60
60
60
110
110
110
150
150
750
750
Quantity


Product info

  • Specifications
    Applications: Industrial, Oil & Gas, Air Conditioning Refrigeration
    Female or male coupling: Plug
    Material Casing: Brass
    Material sealing: NBR
    Standard: ISO 7241-1B
    Temperature range [°C]: -25 °C to 125 °C
