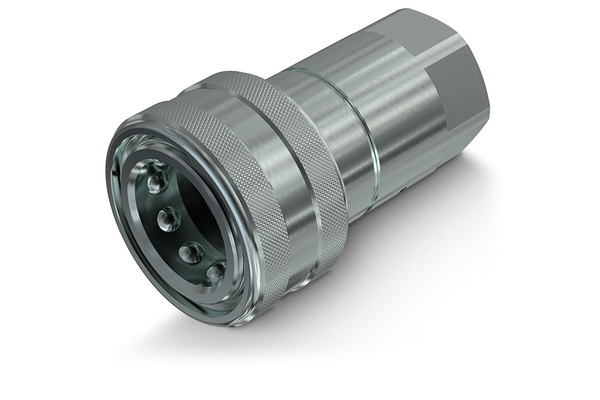

HNV female coupling

Similar image
Similar image

Standard couplings for industrial applications, ISO 7241-B interchange

To accessories

Detail

Art. No.
HNV 18 GAS F
%
SALE
HNV 18 NPT F
%
SALE
HNV 14 GAS F
%
SALE
HNV 14 NPT F
%
SALE
HNV 14-38SAE F
%
SALE
HNV 38 GAS F
%
SALE
HNV 38 NPT F
%
SALE
HNV 38-38SAE F
%
SALE
HNV 12 GAS F
%
SALE
HNV 12 NPT F
%
SALE
HNV 12-58SAE F
%
SALE
HNV 34 GAS F
%
SALE
HNV 34 NPT F
%
SALE
HNV 34-34SAE F
%
SALE
HNV 1 GAS F
%
SALE
HNV 1 NPT F
%
SALE
HNV112-114GAS F
%
SALE
HNV112 GAS F
%
SALE
HNV 2 NPT F
%
SALE
Size
1
1
1
2
2
2
3
3
3
4
4
4
6
6
8
8
DN
05
05
06
06
06
10
10
10
12
12
12
20
20
20
25
38
38
50
Size
02
02
04
04
04
06
06
06
08
08
08
12
12
12
16
16
24
24
32
Inch
1/8
1/8
1/4
1/4
1/4
3/8
3/8
3/8
1/2
1/2
1/2
3/4
3/4
3/4
1
1
1.1/2
1.1/2
2
working pressure [bar]
500
500
450
450
450
300
300
300
350
350
350
250
250
250
300
300
140
140
90
Thread + standard
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
Thread [GA]
1/8
1/8
1/4
1/4
9/16
3/8
3/8
9/16
1/2
1/2
7/8
3/4
3/4
1.1/16
1
1
1.1/4
1.1/2
2

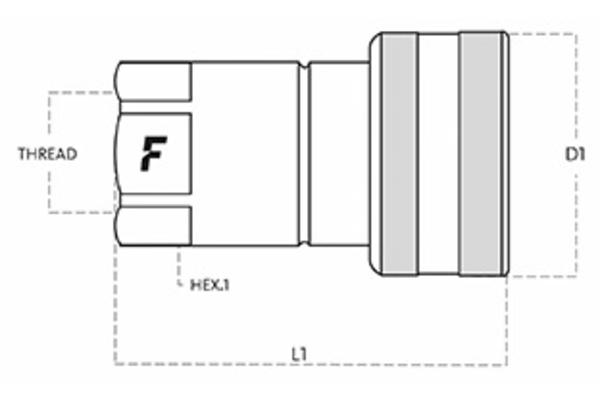

Outer Ø sleeve [mm]
23,0
23,0
28,0
28,0
28,0
35,0
35,0
35,0
44,0
44,0
44,0
52,0
52,0
52,0
62,0
62,0
75
75,0
105,0
Length sleeve [mm]
50,3
50,3
56,0
56,0
60,0
64,0
64,0
64,0
71,5
71,5
71,5
89,0
89,0
89,0
106,0
106,0
126
126,4
142,0
SW1 [mm]
18
18
19
19
19
24
24
24
30
30
30
36
36
36
41
41
65
65
89
l/min at ΔP=2 bar
5
5
17
17
17
50
50
50
75
75
75
190
190
190
270
270
750
750
1600
Quantity


Product info

  • Specifications
    Applications: Industrial, Oil & Gas
    Female or male coupling: Sleeve
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Standard: ISO 7241-1B
    Surface: Mate 500 (Chrom III)
    Temperature range [°C]: -25 °C to 125 °C
