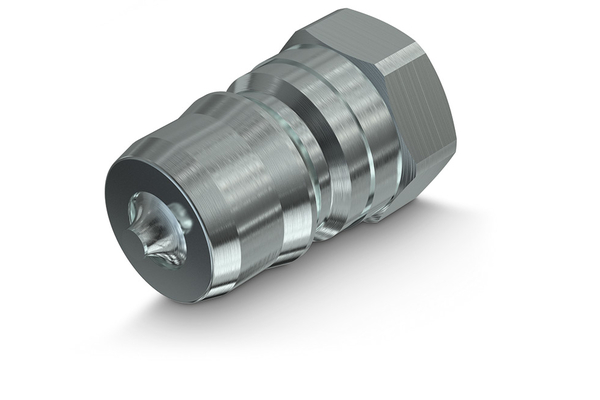

HNV male coupling

Similar image
Similar image

Standard couplings for industrial applications, ISO 7241-1B interchange

To accessories

Detail

Art. No.
HNV 18 GAS M
%
SALE
HNV 18 NPT M
%
SALE
HNV 14 GAS M
%
SALE
HNV 14 NPT M
%
SALE
HNV 14-38SAE M
%
SALE
HNV 38 GAS M
%
SALE
HNV 38 NPT M
%
SALE
HNV 38-12SAE M
%
SALE
HNV 38-38SAE M
%
SALE
HNV 12 GAS M
%
SALE
HNV 12 NPT M
%
SALE
HNV 12-12SAE M
%
SALE
HNV 12-58SAE M
%
SALE
HNV 34 GAS M
%
SALE
HNV 34 NPT M
%
SALE
HNV 34-34SAE M
%
SALE
HNV 1 GAS M
%
SALE
HNV 1 NPT M
%
SALE
HNV112 GAS M
%
SALE
HNV112-114GAS M
%
SALE
HNV 2 NPT M
%
SALE
Size
1
1
1
2
2
2
2
3
3
3
3
4
4
4
6
6
8
DN
05
05
06
06
06
10
10
10
10
12
12
12
12
20
20
20
25
25
38
38
50
Size
02
02
04
04
04
06
06
06
06
08
08
08
08
12
12
12
16
16
24
24
32
Inch
1/8
1/8
1/4
1/4
1/4
3/8
3/8
3/8
3/8
1/2
1/2
1/2
1/2
3/4
3/4
3/4
1
1
1.1/2
1.1/2
2
working pressure [bar]
500
500
450
450
450
300
300
300
300
350
350
350
350
250
250
250
300
300
140
140
90
Thread + standard
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) Innengewinde ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
Thread [GA]
1/8
1/8
1/4
1/4
9/16
3/8
3/8
3/4
9/16
1/2
1/2
3/4
7/8
3/4
3/4
1.1/16
1
1
1.1/2
1.1/4
2

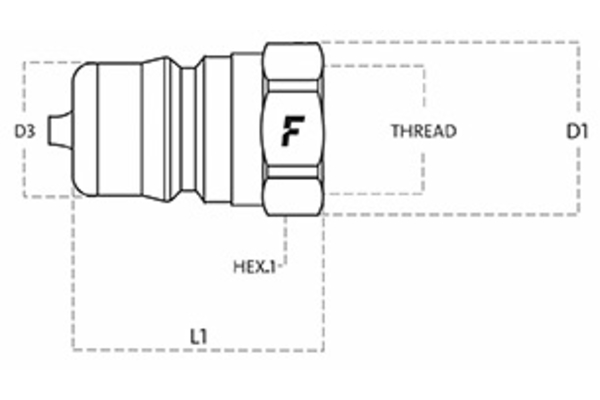

Outer Ø plug [mm]
10,8
10,8
14,1
14,1
14,1
19,0
19,0
19,0
19,0
23,5
23,5
23,5
23,5
31,5
31,5
31,5
37,8
37,8
44,5
44,5
63,25
Length plug [mm]
31,5
31,5
35,0
35,0
39,0
39,0
39,0
45,0
39,0
44,0
44,0
44,0
50,0
55,0
55,0
55,0
66,0
66,0
126,0
126,0
142,0
SW1 [mm]
17
17
19
19
19
22
22
27
22
27
27
27
30
34
34
34
41
41
65
65
89
l/min at ΔP=2 bar
5
5
17
17
17
50
50
50
50
75
75
75
75
190
190
190
270
270
750
750
1600
Quantity


Product info

  • Specifications
    Applications: Industrial, Oil & Gas
    Female or male coupling: Plug
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Standard: ISO 7241-1B
    Surface: Mate 500 (Chrom III)
    Temperature range [°C]: -25 °C to 125 °C
