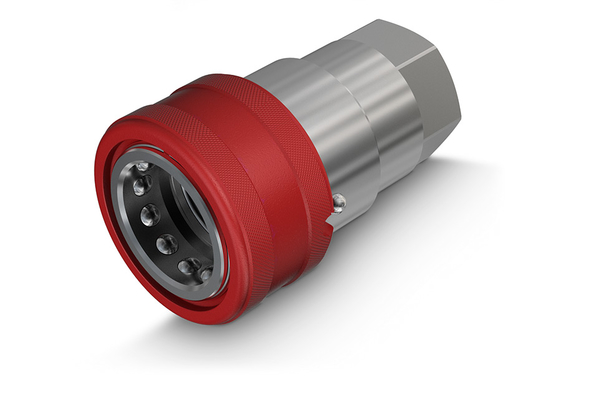

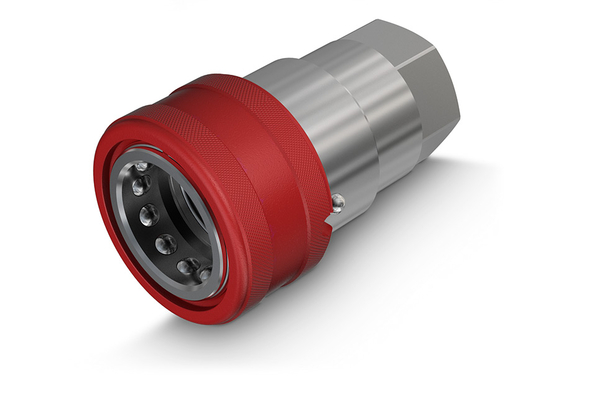

HNVFR female coupling

Standard couplings for industrial applications, ISO 7241-B interchange, BOP certified

To accessories

Detail

Art. No.

HNVFR 12 NPT F

HNVFR 34 NPT F

HNVFR 1 NPT F

Size

Inch

1/2

3/4

working pressure [bar]

210

230

Thread + standard

NPT female-thread ANSI B1.20.3

Thread [GA]

1/2

3/4

Outer Ø sleeve [mm]

47,2

56,2

62,2

Length sleeve [mm]

72,0

89,0

106,4

SW1 [mm]

l/min at ΔP=2 bar

190

270

Quantity

Product info

Specifications

Applications:	Oil & Gas applications
Female or male coupling:	Sleeve
Material Casing:	Steel
Material sealing:	Special
Resistance against red rust [h]:	500
Standard:	ISO 7241-1B
Surface:	Mate 500 (Chrom III)
Temperature range [°C]:	BOP

Benefit

Special version derived from HNV couplings purposely designed for BOP applications and API 16 D certified. Interchangeable according to ISO 7241-B standards.
