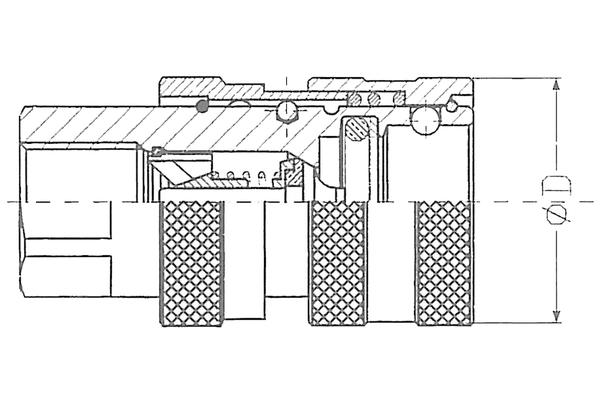

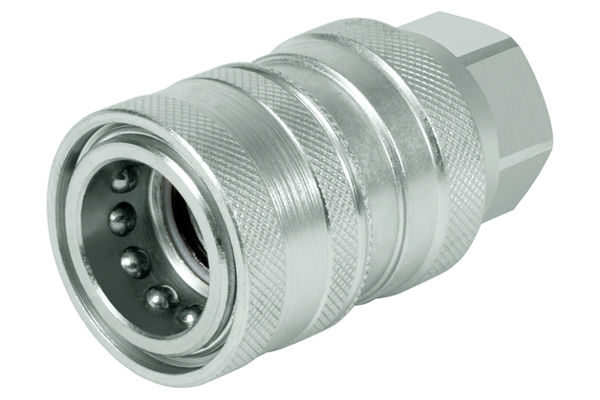

SV female coupling

Similar image
Similar image

For general applications (eg. agricultural technology), with sliding sleeve

To accessories

Detail

Art. No.
ST-SV04BSP06M
%
SALE
ST-SV06BSP10M
%
SALE
ST-SV08BSP12M
%
SALE
Size
1
2
3
DN
6
10
12
Size
4
06
08
Inch
1/4
3/8
1/2
working pressure [bar]
350
300
300
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
Thread [GA]
1/4
3/8
1/2
Outer Ø sleeve [mm]
27
33
38
Length sleeve [mm]
50,0
59,5
66,0
SW1 [mm]
19
24
27
l/min at ΔP=2 bar
15
50
75
Quantity


Product info

  • Specifications
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: sleeve
    Material: C-steel, nitrified
    Material sealing: Standard NBR, 85 Shore.
    Material support ring: PTFE
    Surface: galvanised and Cr III passivated
    Temperature range [°C]: -25°C to +125 °C

Benefit

SV Seriess is interchangeable with the ST-NV Seriess and in size 08 also with the ISO7241-1A. Equipped with an additional safety sleeve to prevent an unintentional disconnection.

Accessories

dust protection

Practical tip

In order to connect against residual pressure - please refer to our pressure relief valve VDM.
