Product info
-
Specifications

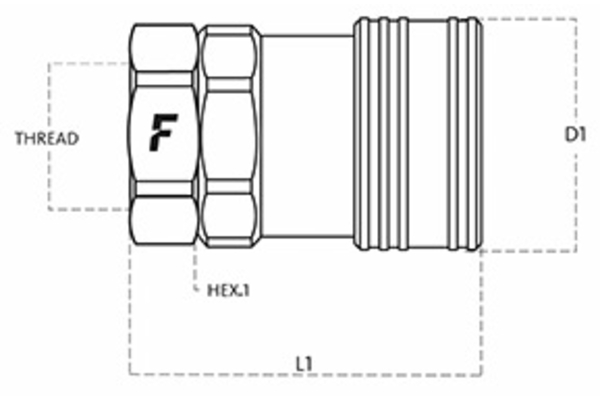

DN: 25 Size: 16 Inch: 1 working pressure [bar]: 75 Thread + standard: NPT female-thread ANSI B1.20.3 Thread [GA]: 1 Outer Ø sleeve [mm]: 52,5 Length sleeve [mm]: 51,0 SW1 [mm]: 48 l/min at ΔP=2 bar: 280 Applications: Industrial, Oil & Gas Female or male coupling: Sleeve Material Casing: Brass Material sealing: NBR Temperature range [°C]: -25 °C to 125 °C
