Product info
-
Specifications

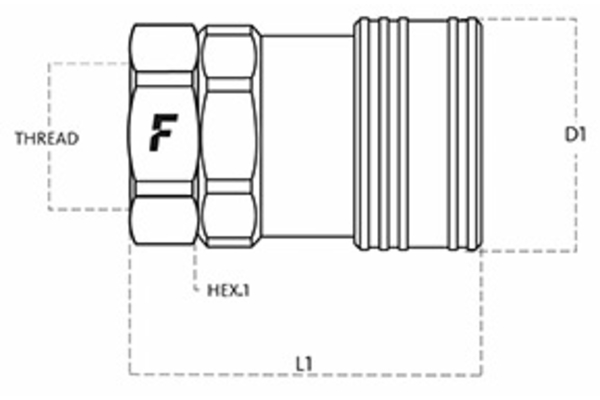

DN: 38 Size: 24 Inch: 1.1/2 working pressure [bar]: 55 Thread + standard: BSP female-thread ISO 1179-1 Thread [GA]: 1.1/2 Outer Ø sleeve [mm]: 70,0 Length sleeve [mm]: 91,0 SW1 [mm]: 65 l/min at ΔP=2 bar: 450 Applications: Industrial, Oil & Gas Female or male coupling: Sleeve Material Casing: Brass Material sealing: NBR Temperature range [°C]: -25 °C to 125 °C
