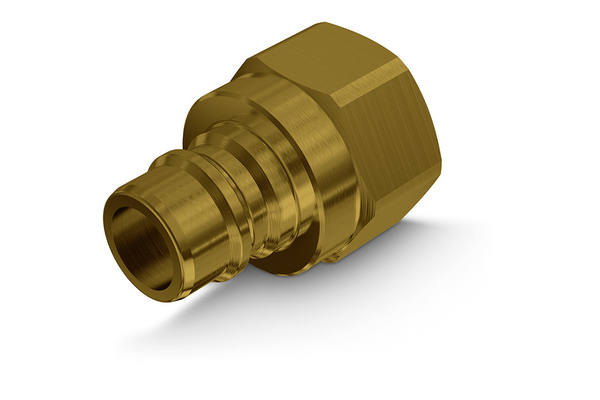

TNL brass male coupling

Similar image
Similar image

Standard couplings, free flow, brass versions

To accessories

Detail

Art. No.
TNL 16 NPT M 5
%
SALE
TNL 24 GAS M 5
%
SALE
DN
25
38
Size
16
24
Inch
1
1.1/2
working pressure [bar]
75
55
Thread + standard
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
Thread [GA]
1
1.1/2

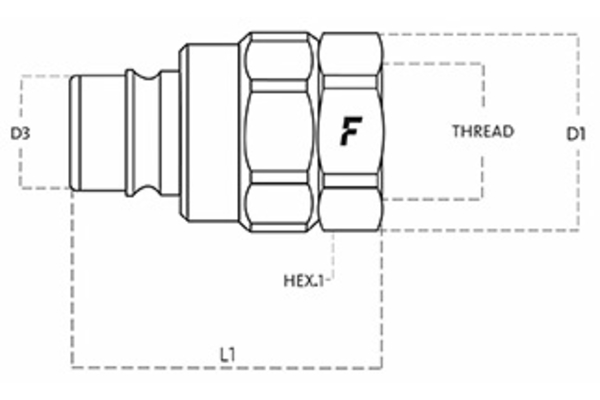

Outer Ø plug [mm]
29,7
43,5
Length plug [mm]
51,0
62,0
SW1 [mm]
41
60
l/min at ΔP=2 bar
280
450
Quantity


Product info

  • Specifications
    Applications: Industrial, Oil & Gas
    Female or male coupling: Plug
    Material Casing: Brass
    Material sealing: NBR
    Temperature range [°C]: -25 °C to 125 °C

Benefit

TNL series couplings are commonly used in US market as an alternative to standard series. Assembled without internal valves they have been designed to maximize flow. Fully interchangeable with TNV versions. Brass construction.
