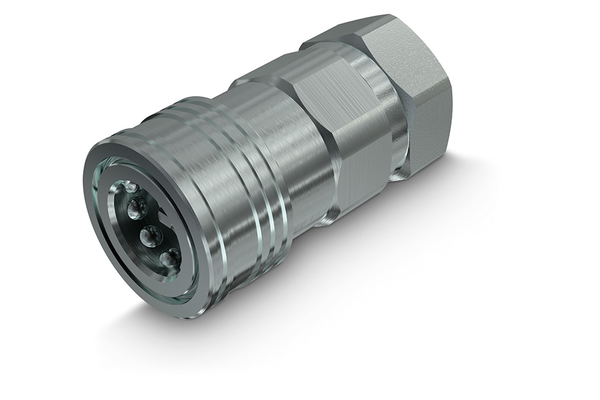

TNV female coupling

Standard couplings

To accessories

Detail

Art. No.

TNV 04 NPT F

TNV 06 NPT F

TNV 08 NPT F

TNV 12 NPT F

TNV120/1116UN F

TNV120/34GAS F

TNV 16 NPT F

TNV160/1GAS F

TNV 20 NPT F

TNV 24 NPT F

Size

Inch

1/4

3/8

1/2

3/4

1.1/4

1.1/2

working pressure [bar]

270

300

220

190

170

150

100

110

Thread + standard

NPT female-thread ANSI B1.20.3

SAE (UNF) female-thread ISO 11926-1

BSP female-thread ORB BS 5380

NPT female-thread ANSI B1.20.3

BSP female-thread ORB BS 5380

NPT female-thread ANSI B1.20.3

Thread [GA]

1/4

3/8

1/2

3/4

1.1/16

3/4

1.1/4

1.1/2

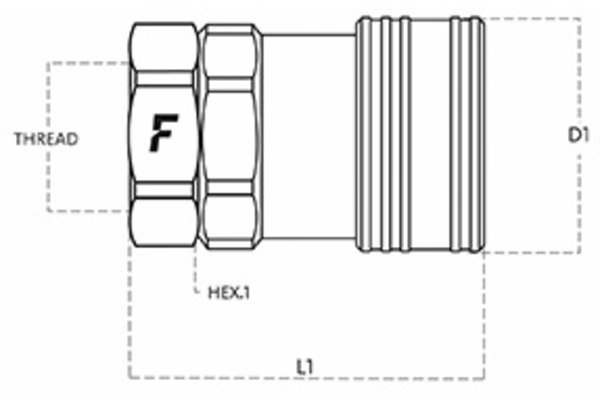

Outer Ø sleeve [mm]

24,0

27,0

34,0

42,0

40,0

50,5

56,0

70,0

Length sleeve [mm]

50,0

57,0

65,0

64,0

85,5

71,0

97,0

91,0

SW1 [mm]

l/min at ΔP=2 bar

170

280

450

Quantity

Product info

Specifications

Applications:	Industrial, Oil & Gas
Female or male coupling:	Sleeve
Material Casing:	Steel
Material sealing:	NBR
Resistance against red rust [h]:	500
Surface:	MATE 500 (CrIII)
Temperature range [°C]:	-25 °C to 125 °C

Benefit

TNV series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with TNL parts (free flow) same series.
