Product info
-
Specifications

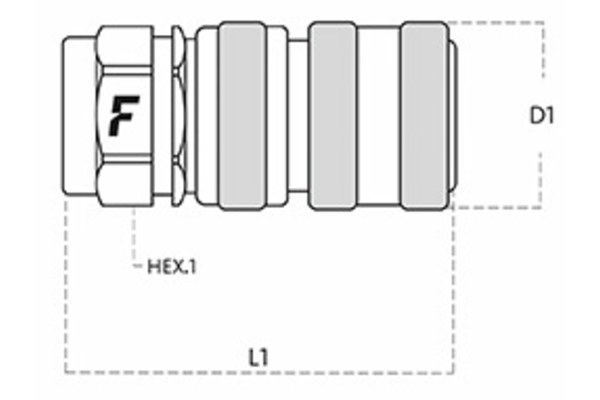

DN: 06 Size: 04 Inch: 1/4 working pressure [bar]: 1500 Thread + standard: NPT female ANSI B1.20.3 Thread [GA]: 1/4 Outer Ø sleeve [mm]: 28,0 Length sleeve [mm]: 59,3 SW1 [mm]: 24 l/min at ΔP=2 bar: 4 Applications: Industrial and high pressure applications Female or male coupling: Sleeve Material Casing: Steel Material sealing: NBR Surface: CR III & Zn-Ni Temperature range [°C]: -25 °C to 100 °C
