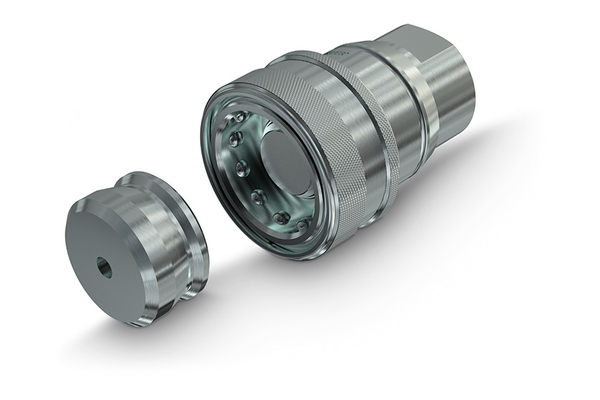

VF female coupling

Couplings for braking systems, ISO 5676 interchange

To accessories

Detail

Art. No.

VF 0/12 GAS F

VF 38 GAS F

VF 1815 F

VFB 12 GAS F

VFB 38 GAS F

VFS 1815 F

VFS 38 GAS F

Size

Inch

3/8

working pressure [bar]

220

Thread + standard

BSP female-thread ORB BS 5380

BSP female-thread ISO 1179-1

Metric female-thread ISO 9974-1

BSP female-thread ISO 1179-1

Metric female-thread ISO 9974-1

BSP female-thread ISO 1179-1

Thread [GA]

1/2

3/8

M18x1,5

1/2

3/8

M18x1,5

3/8

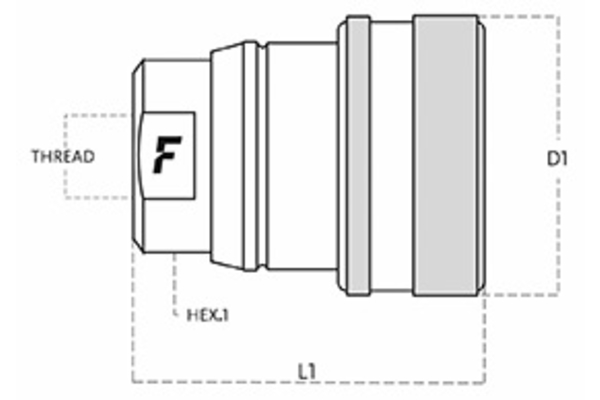

Outer Ø sleeve [mm]

44,0

Length sleeve [mm]

59,0

55,0

84,0

55,0

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Specifications

Applications:	Agriculture
Female or male coupling:	Sleeve
Material Casing:	Steel
Material sealing:	NBR
Resistance against red rust [h]:	500
Standard:	ISO 5676
Surface:	MATE 500 (CrIII)
Temperature range [°C]:	-25 °C to 125 °C

Benefit

Flat face couplings designed to connect the braking circuit of trailers to the hydraulic circuit of agricultural machines. ISO 5676 interchange. Some special versions equipped with an additional safety sleeve (VFS) or with an hydraulic lock (VFB) to prevent accidental disconnections are available in the range.
