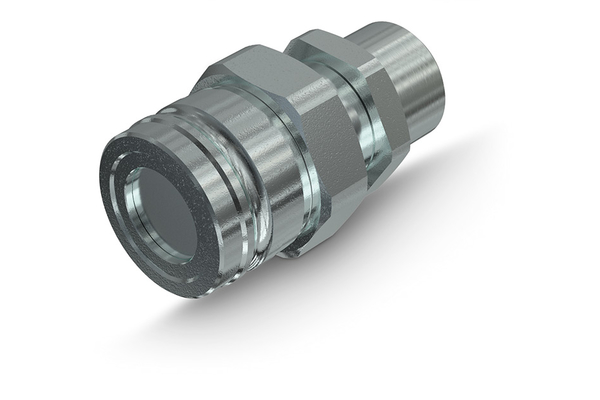

VF male coupling

Couplings for braking systems, ISO 5676 interchange.

To accessories

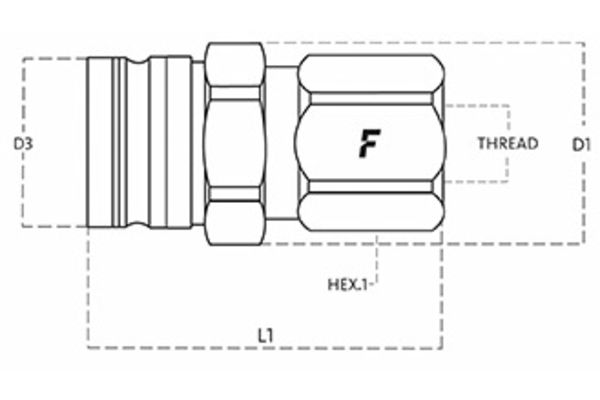

Detail

Art. No.

VF 7/1815 M

VF 1/12 GAS M

VF 1/1815 M T

VF 12 GAS M

VF 14/58S M

VF 5/2215 M

VF 5/2215 M T

VF 8/2015 M

VF 9/1615 M

VF 9/1815 M

VF7/1815 M T

VFF17/38S M

Size

Inch

3/8

working pressure [bar]

220

Thread + standard

Metric bulkhead short ISO 8434-1-L

BSP male-thread ISO 1179-3

Metric male-thread ISO 6149-2

BSP female-thread ISO 1179-1

JIC bulkhead ISO 8434-2

Metric bulkhead ISO 8434-1-L

Metric bulkhead ISO 8434-1-S

Metric male-thread ISO 8434-1-L

Metric bulkhead short ISO 8434-1-L

ORFS (UN) male-thread ISO 8434-1-3

Thread [GA]

M18x1,5

1/2

7/8

M22x1,5

M20x1,5

M16x1,5

M18x1,5

11/16

Pipe Ø R [mm]

15L

12S

10L

12L

Outer Ø plug [mm]

29,0

Length plug [mm]

53,0

59,0

57,0

67,0

64,0

59,0

54,0

53,0

60,0

SW2 [mm]

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Specifications

Applications:	Agriculture
Female or male coupling:	Plug
Material Casing:	Steel
Material sealing:	NBR
Resistance against red rust [h]:	500
Standard:	ISO 5676
Surface:	MATE 500 (CrIII)
Temperature range [°C]:	-25 °C to 125 °C

Benefit

Flat face couplings designed to connect the braking circuit of trailers to the hydraulic circuit of agricultural machines. ISO 5676 interchange. The part numbers ending with “T” are provided with caps.
