SK-PVV female coupling

For an application in the field of hydraulic tools, compatibility according to ISO 14540

To accessories

Detail

Art. No.

SK-PVV06-04NPT10M

SK-PVV06-04BM10M

SK-PVV04NPT06M

SK-PVV06NPT10M

Size

Inch

3/8

1/4

3/8

working pressure [bar]

1000

1030

1000

Thread + standard

ANSI B1.20.3

BSP male thread DIN 3863 (60°)

NPT male thread DIN 3863

Thread [GA]

NPTF 1/4" MALE

1/4

3/8

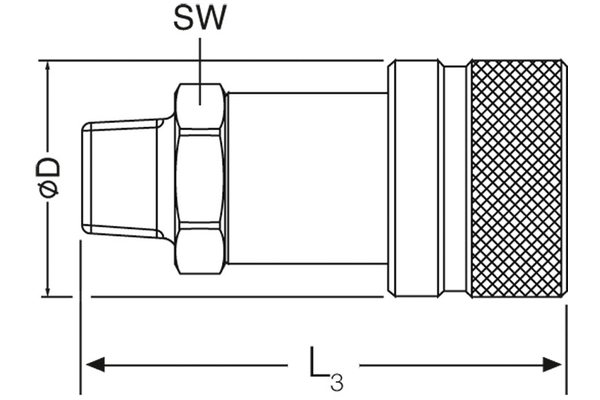

Outer Ø sleeve [mm]

Length sleeve [mm]

148,7

82,3

62,8

83,3

Wrench size connection side sleeve

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Specifications

Applications:	hydraulic hand tools, rescue equipment
Female or male coupling:	sleeve
Material Casing:	Steel
Material sealing:	NBR
Material support ring:	PTFE
Surface:	MATE 500 (CrIII)
Temperature range [°C]:	-25 °C /+125 °C

Benefit

The PVV has a poppet valve which allows higher flow rates compared to other couplings with ball valves. Widely spread on the german and american market. Interchangeable with a wide range of manufacturers.
