Product info
-
Specifications

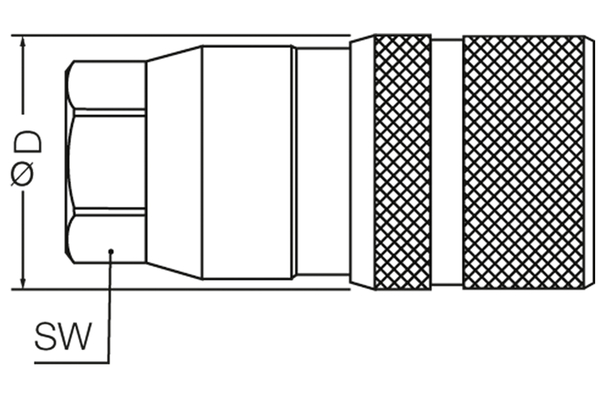

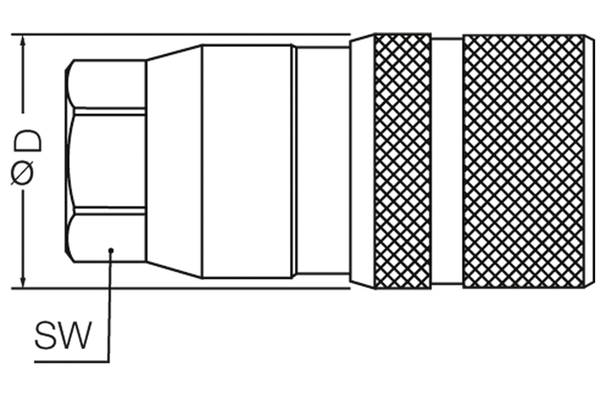

DN: 05 Size: 02 Inch: 1/8 working pressure [bar]: 350 Thread + standard: BSP female-thread ISO 1179-1 Thread [GA]: 1/8" Outer Ø sleeve [mm]: 20,0 Length sleeve [mm]: 46,1 SW1 [mm]: 18 l/min at ΔP=2 bar: 12 Applications: Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines Female or male coupling: sleeve Material Casing: Steel Material sealing: NBR & PUR Resistance against red rust [h]: 500 Surface: Mate 500 (Chrom III) Temperature range [°C]: -25°C to +100°C
