Product info
-
Specifications

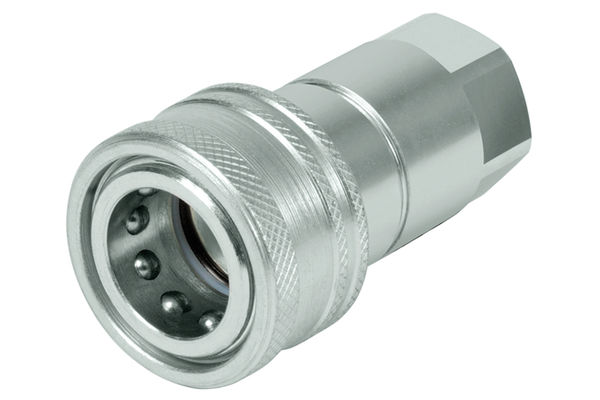

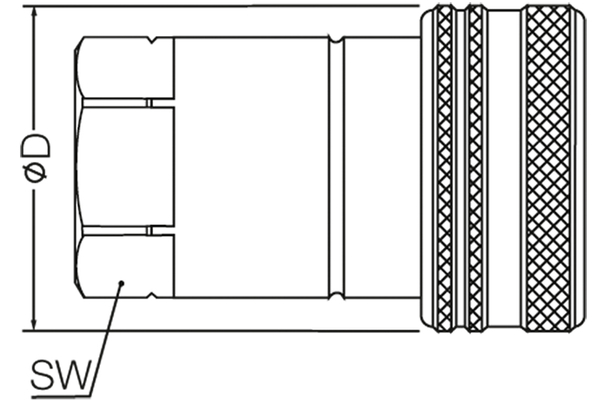

Size: 1 DN: 06 Size: 04 Inch: 1/4 working pressure [bar]: 350 Thread + standard: NPT female thread DIN 3852 Thread [GA]: 1/4 Outer Ø sleeve [mm]: 26,0 Length sleeve [mm]: 49,2 Wrench size connection side sleeve: 19 SW1 [mm]: 19 l/min at ΔP=2 bar: 12 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: Series ST-ANV female coupling. Product title short: female coupling Standard: ISO 7241-1A Surface: galvanised and Cr III passivated Temperature range [°C]: -25°C / +100°C
