Product info
-
Specifications

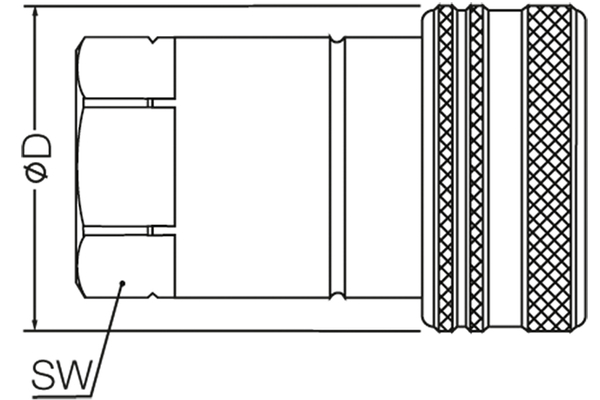

Size: 2 DN: 10 Size: 06 Inch: 3/8 working pressure [bar]: 300 Thread + standard: NPT female thread DIN 3852 Thread [GA]: 3/8 Outer Ø sleeve [mm]: 30,0 Length sleeve [mm]: 60,5 Wrench size connection side sleeve: 22 SW1 [mm]: 22 l/min at ΔP=2 bar: 23 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: Series ST-ANV female coupling. Product title short: female coupling Standard: ISO 7241-1A Surface: galvanised and Cr III passivated Temperature range [°C]: -25°C / +100°C
