Product info
-
Specifications

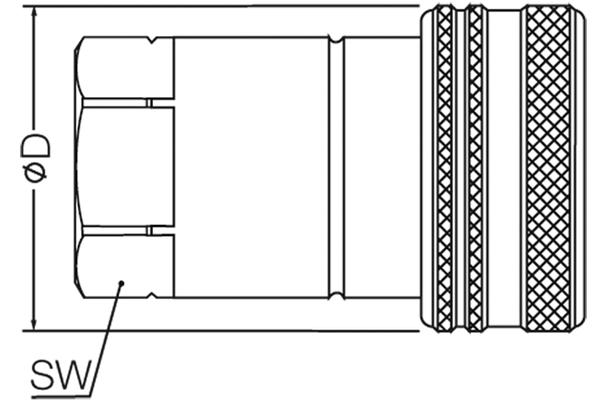

Size: 6 DN: 25 Size: 16 Inch: 1 working pressure [bar]: 250 Thread + standard: NPT female thread DIN 3852 Thread [GA]: 1 Outer Ø sleeve [mm]: 52,0 Length sleeve [mm]: 101,3 Wrench size connection side sleeve: 41 SW1 [mm]: 41 l/min at ΔP=2 bar: 189 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: Series ST-ANV female coupling. Product title short: female coupling Standard: ISO 7241-1A Surface: galvanised and Cr III passivated Temperature range [°C]: -25°C / +100°C
