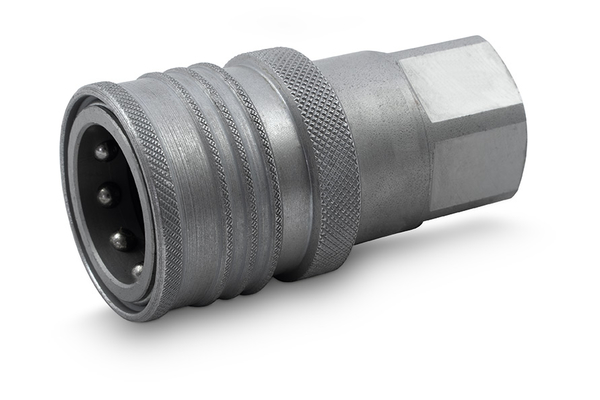

Size: 2 DN: 10 Size: 06 Inch: 3/8 working pressure [bar]: 280 Thread + standard: BSP female DIN 3852 Thread [GA]: 3/8 Outer Ø sleeve [mm]: 35,0 Length sleeve [mm]: 62,0 SW1 [mm]: 24 l/min at ΔP=2 bar: 45 L/min Applications: construction machinery, industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material Casing: Steel Material sealing: Standard NBR, 85 Shore. Backup ring PTFE Product title long: Series ST-C525 female coupling. Product title short: female coupling Surface: galvanised and Cr III passivated Temperature range [°C]: -30°C to +100°C wrong type: false
