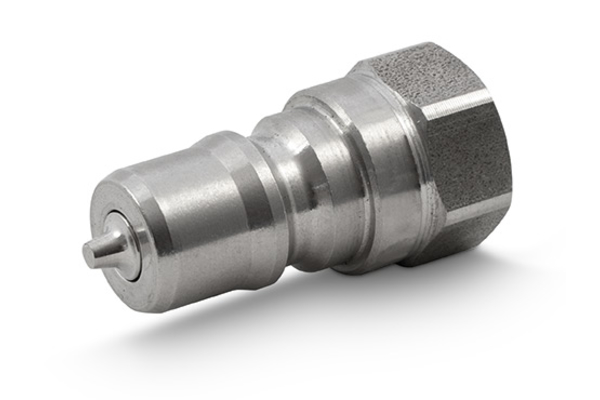

ST-HNV-VA male coupling (VA)

Similar image
Similar image

For industrial applications, compatibility according to ISO 7241-B

To accessories

Detail

Art. No.
ST-HNV04BSP06VA-S
%
SALE
ST-HNV06BSP10VA-S
%
SALE
ST-HNV08BSP12VA-S
%
SALE
ST-HNV12BSP16VA-S
%
SALE
ST-HNV16BSP20VA-S
%
SALE
Size
1
2
3
4
6
DN
06
10
12
20
25
Size
04
06
08
12
16
Inch
1/4
3/8
1/2
3/4
1
working pressure [bar]
350
300
300
220
200
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
Thread [GA]
1/4
3/8
1/2
3/4
1

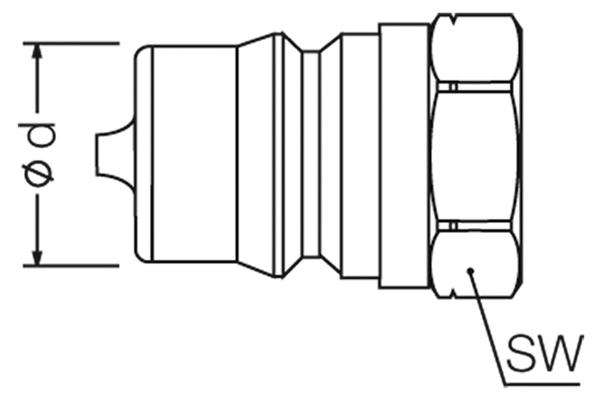

Outer Ø plug [mm]
14,2
19,1
23,5
31,4
37,8
Length plug [mm]
38,0
42,5
48,0
57,0
65,5
Wrench size connection side sleeve
19
22
27
34
4
SW1 [mm]
19
22
27
34
41
l/min at ΔP=2 bar
12
23
45
106
189
Quantity


Product info

  • Specifications
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: plug
    Material: AISI 316; (1.4436)
    Material Casing: stainless steel
    Material sealing: FKM 85 Shore
    Material support ring: PTFE
    Standard: ISO 7241-1B
    Temperature range [°C]: -25 °C to +100 °C

Benefit

Intechangeable according to the ISO7241-1B standard. Available in steel, brass and stainless steel.

Accessories

dust protection
