Product info
-
Specifications

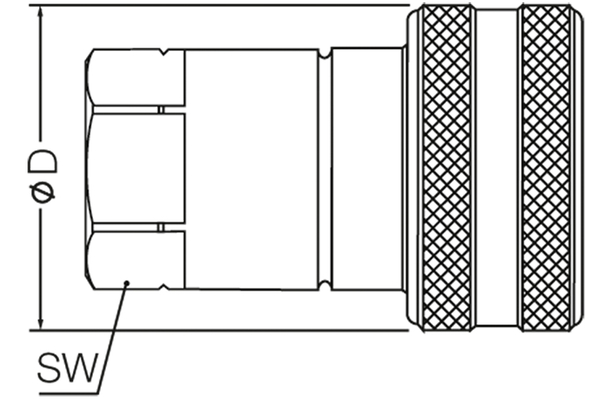

DN: 05 working pressure [bar]: 500 Thread + standard: NPT female thread DIN 3852 Thread [GA]: 1/8 Pipe Ø R [mm]: IND_Oberflaechenbeschichtung Outer Ø sleeve [mm]: 23 Length sleeve [mm]: 50,6 burst pressure plug uncoupled [bar]: 240 burst pressure coupled [bar]: 270 burst pressure sleeve uncoupled [bar]: 230 l/min at ΔP=2 bar: 3 Female or male coupling: sleeve Form of the sealing valve: poppet Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Standard: ISO 7241-1B Surface: Zn-Fe (Chrom III) Temperature range [°C]: -25 °C to +100 °C
