Product info
-
Specifications

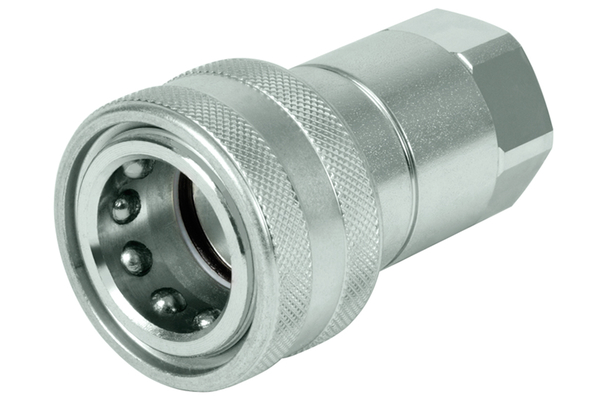

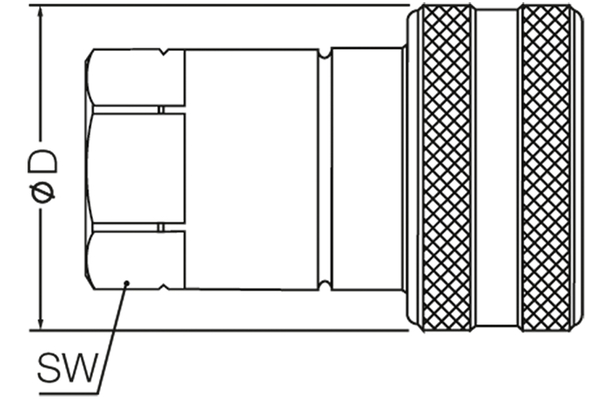

Size: 8 DN: 40 Size: 24 Inch: 1.1/2 working pressure [bar]: 200 Thread + standard: BSP female DIN 3852 Thread [GA]: 1.1/4 Pipe Ø R [mm]: IND_Oberflaechenbeschichtung Outer Ø sleeve [mm]: 75,0 Length sleeve [mm]: 125,0 Wrench size connection side sleeve: 65 burst pressure plug uncoupled [bar]: 25 burst pressure coupled [bar]: 25 burst pressure sleeve uncoupled [bar]: 25 SW1 [mm]: 65 l/min at ΔP=2 bar: 379 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Form of the sealing valve: poppet Material: C-steel, nitrified Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: Series ST-HNV female coupling. Product title short: female coupling Standard: ISO 7241-1B Surface: Zn-Fe (Chrom III) Temperature range [°C]: -25 °C to +100 °C
