Product info
-
Specifications

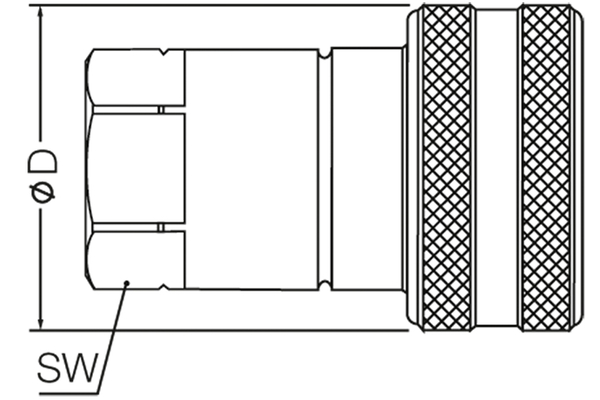

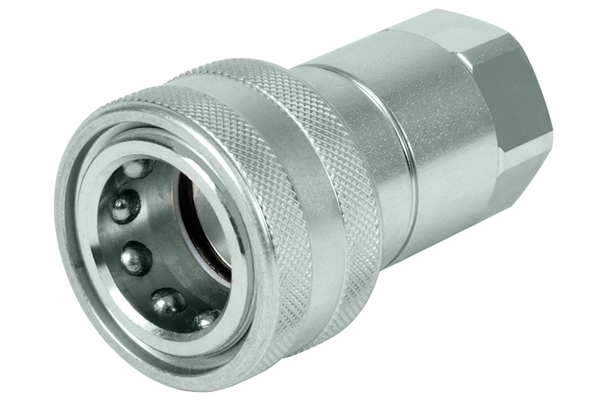

Size: - DN: 50 Size: 32 Inch: 2 working pressure [bar]: 100 Thread + standard: BSP female DIN 3852 Thread [GA]: 2 Outer Ø sleeve [mm]: 105,0 Length sleeve [mm]: 142,0 Wrench size connection side sleeve: 90 SW1 [mm]: 90 l/min at ΔP=2 bar: 757 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: Series ST-HNV female coupling. Product title short: female coupling Standard: ISO 7241-1B Surface: Zn-Fe (Chrom III) Temperature range [°C]: -25 °C to +100 °C
