Product info
-
Specifications

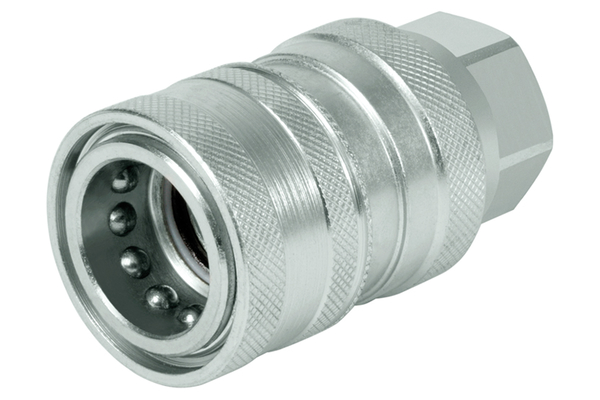

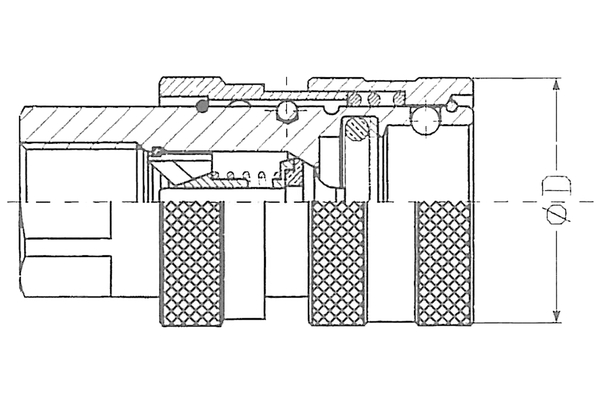

Size: 1 DN: 6 Size: 4 Inch: 1/4 working pressure [bar]: 350 Thread + standard: BSP female DIN 3852 Thread [GA]: 1/4 Outer Ø sleeve [mm]: 27 Length sleeve [mm]: 50,0 SW1 [mm]: 19 l/min at ΔP=2 bar: 15 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material sealing: Standard NBR, 85 Shore. Material support ring: PTFE Product title long: Series ST-SV female coupling. Product title short: female coupling Surface: galvanised and Cr III passivated Temperature range [°C]: -25°C to +125 °C
