Product info
-
Specifications

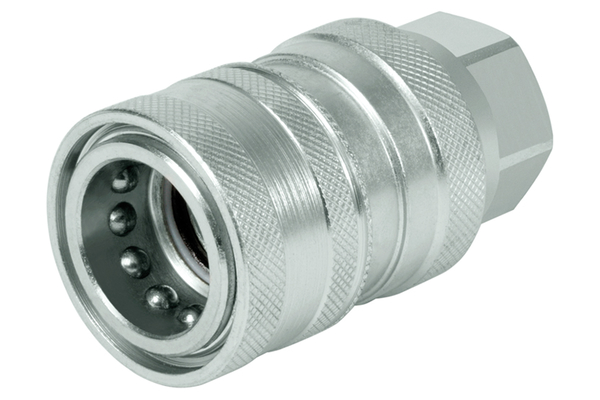

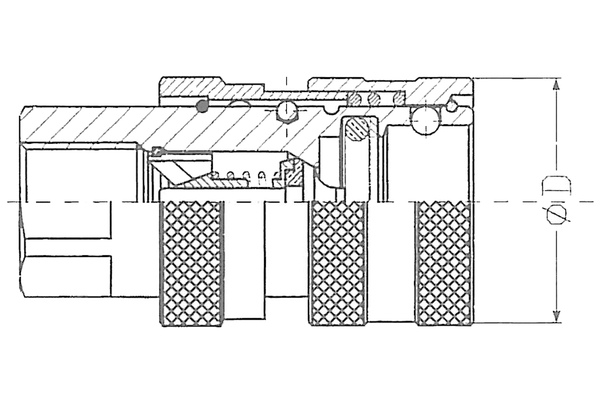

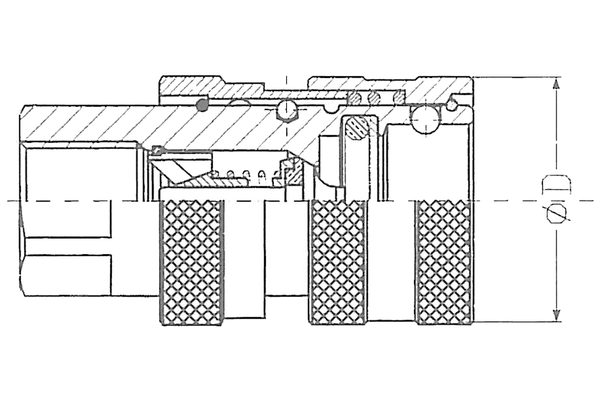

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 300 Thread + standard: BSP female DIN 3852 Thread [GA]: 1/2 Outer Ø sleeve [mm]: 38 Length sleeve [mm]: 66,0 SW1 [mm]: 27 l/min at ΔP=2 bar: 75 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material sealing: Standard NBR, 85 Shore. Material support ring: PTFE Product title long: Series ST-SV female coupling. Product title short: female coupling Surface: galvanised and Cr III passivated Temperature range [°C]: -25°C to +125 °C
