Product info
-
Specifications

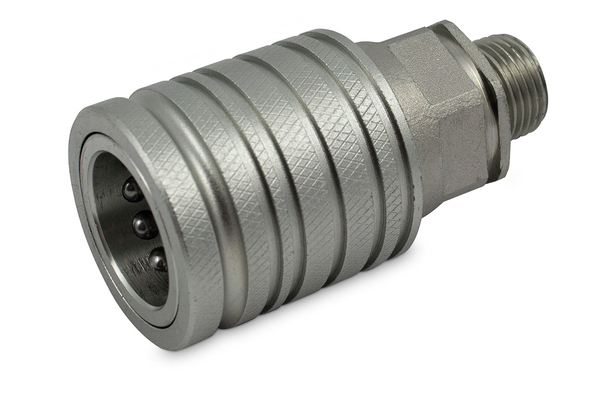

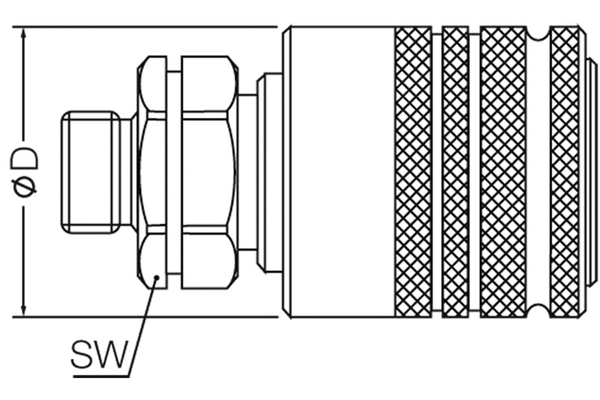

Size: 2 DN: 10 Size: 06 Inch: 3/8 working pressure [bar]: 300 Thread + standard: CE male thread heavy Series, DIN 3861 Thread [GA]: M18x1,5 Pipe Ø R [mm]: 10S Outer Ø sleeve [mm]: 31,0 Length sleeve [mm]: 66.8 burst pressure coupled [bar]: 1300 GL [mm]: 12 burst pressure sleeve uncoupled [bar]: 1500 SW1 [mm]: 22 l/min at ΔP=2 bar: 23 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Form of the sealing valve: poppet Material: steel gem. EN10277 Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: Series ST2 female coupling. Product title short: female coupling Standard: ISO 7241-1A Surface: Zn-Fe (Chrom III) Temperature range [°C]: -25 °C to +100 °C
