Product info
-
Specifications

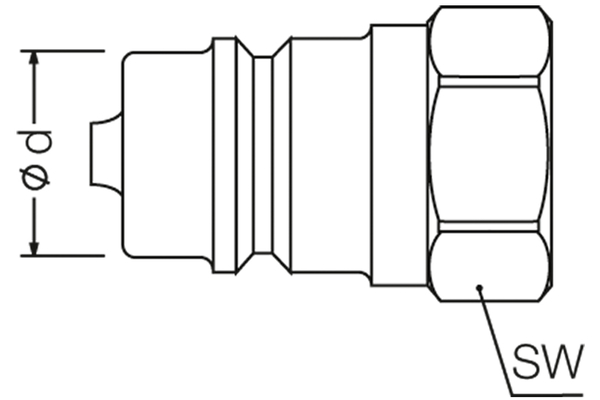

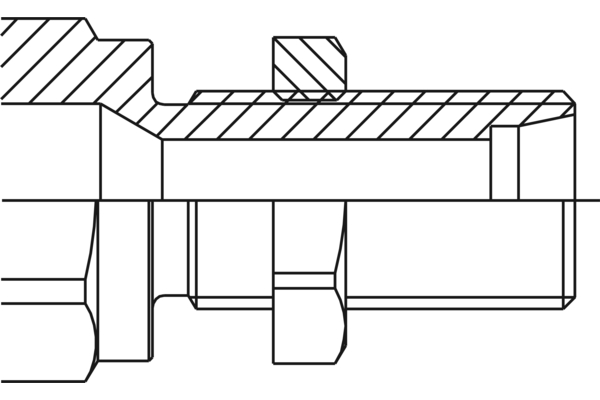

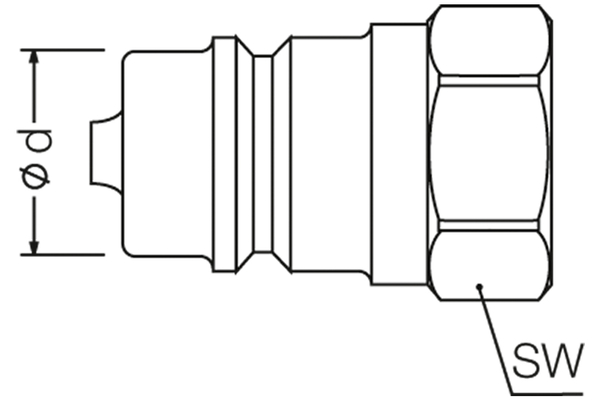

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 300 Thread + standard: male thread CE-Bulkhead light Series, DIN 3861 Thread [GA]: M26x1,5 Pipe Ø R [mm]: 18L Outer Ø plug [mm]: 20,5 Length plug [mm]: 73,0 Wrench size connection side plug: 30 burst pressure plug uncoupled [bar]: 950 burst pressure coupled [bar]: 1100 GL [mm]: 27 l/min at ΔP=2 bar: 45 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: plug Form of the sealing valve: poppet Material: C-steel, nitrified Material Casing: Steel Material sealing: NBR 85 Shore Material support ring: PTFE Product title long: Series ST3 male coupling. Product title short: male coupling Standard: ISO 7241-1A Surface: Zn-Fe (Chrom III) Temperature range [°C]: -25°C to +100 °C
