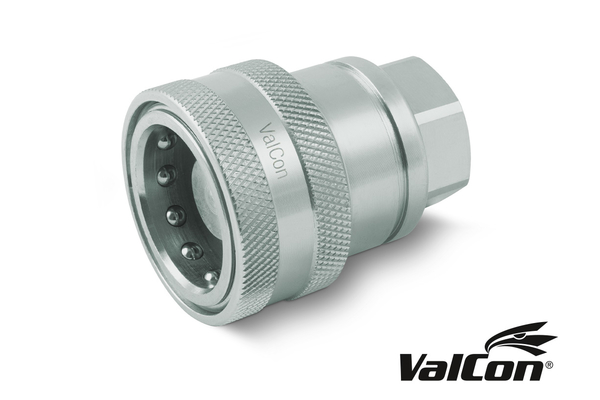

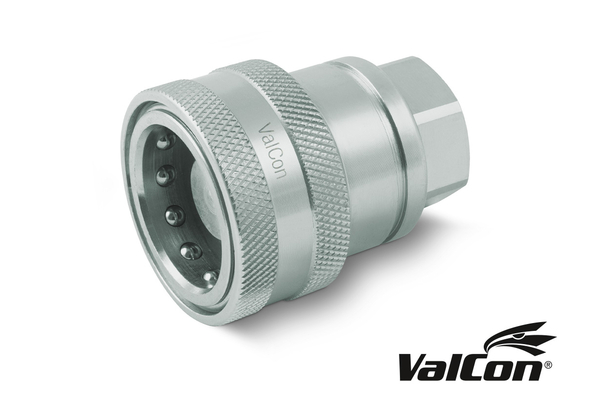

Valcon® VC-BC femal coupling

Detail

Size
3
3
3
DN
12
12
12
Size
08
08
08
Inch
1/2
1/2
1/2
working pressure [bar]
150
150
150
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
Metric internal thread ISO 8434-1
Thread [GA]
3/8
1/2"
M18x1,5

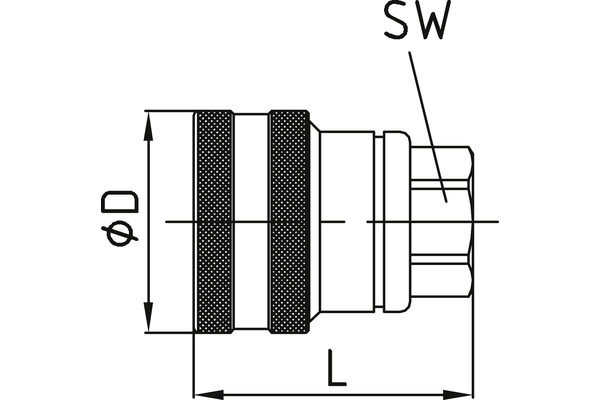

Outer Ø sleeve [mm]
44,0
44,0
44,0
Length sleeve [mm]
56,0
56,0
56,0
Ø D [mm]
44,0
44,0
44,0
SW1 [mm]
27
27
27
l/min at ΔP=2 bar
42
42
42
Quantity


Product info

  • Specifications
    Form of the sealing valve: Flat Poppet Type
    Material: steel
    Material support ring: PTFE
