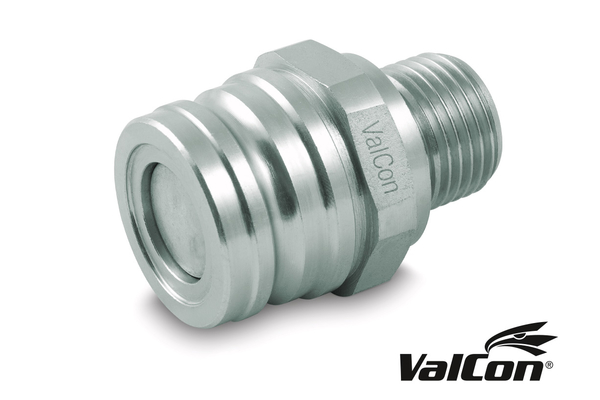

Valcon® VC-BC male coupling

Similar image
Similar image
To accessories

Detail

Art. No.
VC-BC-CELS12-12S
%
SALE
VC-BC-CESS12-12S
%
SALE
VC-BC-CELS15-12S
%
SALE
VC-BC16-20CELS10-12S
%
SALE
VC-BC-AG1/2BSP12S
%
SALE
Size
3
3
3
3
3
DN
12
12
12
12
12
Size
08
08
08
08
08
Inch
1/2
1/2
1/2
1/2
1/2
working pressure [bar]
150
150
150
150
150
Thread + standard
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead heavy Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
male thread CE-Bulkhead light Series, DIN 3861
BSP male-thread DIN 3852
Thread [GA]
M18x1,5
M18x1,5
M22x1,5
M16x1,5
1/2"
Outer Ø plug [mm]
30,0
30,0
30,0
30,0
30,0
Length plug [mm]
51,0
51,0
51,0
52,0
48,0

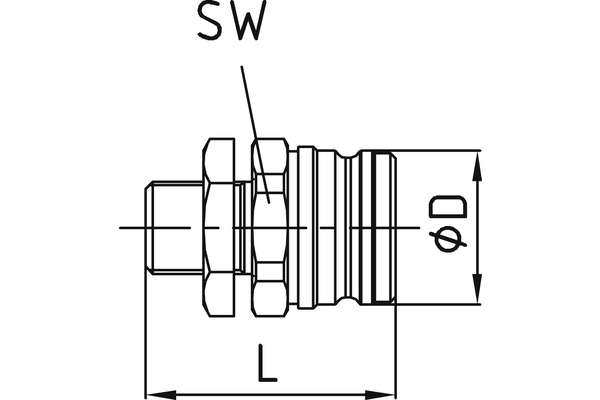

Ø D [mm]
30,0
30,0
30,0
30,0
30,0
SW1 [mm]
32
32
32
32
32
l/min at ΔP=2 bar
42
42
42
42
42
L1 [mm]
91.5
91.5
91.5
93
88.5
Quantity


Product info

  • Specifications
    Form of the sealing valve: Flat Poppet Type
    Material: steel
    Material support ring: PTFE
