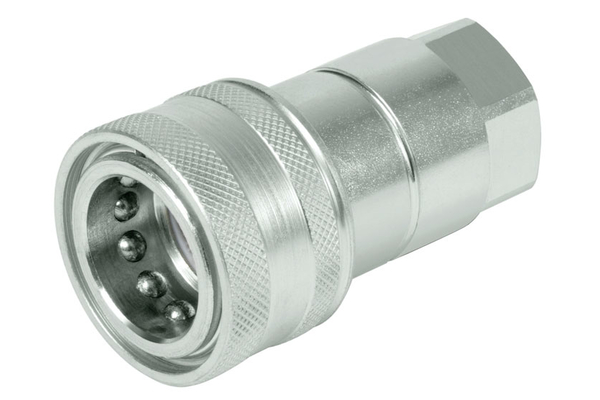

Valcon® VC-NV female coupling

standard coupling for general applications (for example agriculture). DN12 (size 1/2") is interchangeable according to ISO 7241-1A

To accessories

Detail

Art. No.

VC-NV-IG1/4-06M

VC-NV-IG3/8-10M

VC-NV-IG1/2-12M

VC-NV-IG3/4-20M

VC-NV-IG1-25M

Size

Inch

1/4

3/8

1/2"

3/4"

working pressure [bar]

350

300

250

Thread + standard

BSP female-thread ISO 1179-1

BSP Innengewinde ISO 1179-1

Thread [GA]

1/4"

3/8"

1/2"

3/4"

Outer Ø sleeve [mm]

27,6

34,0

38,5

47,5

56,2

Length sleeve [mm]

55,5

60,5

68,0

82,5

97,5

SW1 [mm]

l/min at ΔP=2 bar

100

180

L1 [mm]

74,2

80,2

92,3

107,8

128,8

Quantity

Product info

Specifications

Applications:	General application (e.g. agriculture)
Female or male coupling:	Female
Material:	C-steel, nitrified
Material Casing:	Steel
Material sealing:	NBR
Material support ring:	PTFE
Resistance against red rust [h]:	200
Resistance against white rust [h]:	400
Surface:	Chrome III
Temperature range [°C]:	-20°C up to +100°C
