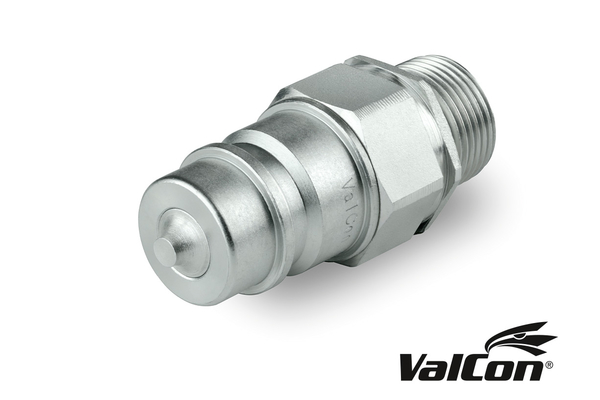

Valcon® VC-PP male coupling

Detail

Size
3
3
3
3
DN
12
12
12
12
Size
08
08
08
08
Inch
1/2
1/2
1/2
1/2
working pressure [bar]
250
300
300
300
Thread + standard
Metric male-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-L
Metric male-thread ISO 8434-1-L
BSP female-thread ISO 1179-1
Thread [GA]
M16x1,5
M18x1,5
M22x1,5
1/2"

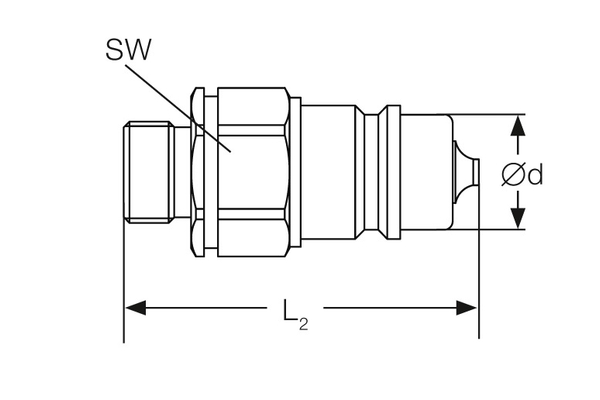

Outer Ø plug [mm]
20,6
20,6
20,6
20,6
Length plug [mm]
58,5
58,5
60,5
44,0
SW1 [mm]
27
27
27
27
l/min at ΔP=2 bar
50
50
50
50
Quantity


Product info

  • Specifications
    Applications: General application (e.g. agriculture)
    Female or male coupling: Female
    Material: C-steel, nitrified
    Material Casing: Stahl
    Material sealing: NBR
    Resistance against red rust [h]: 200
    Resistance against white rust [h]: 400
    Standard: ISO 7241-1A
    Surface: Chrome III
    Temperature range [°C]: -20°C up to +100°C
