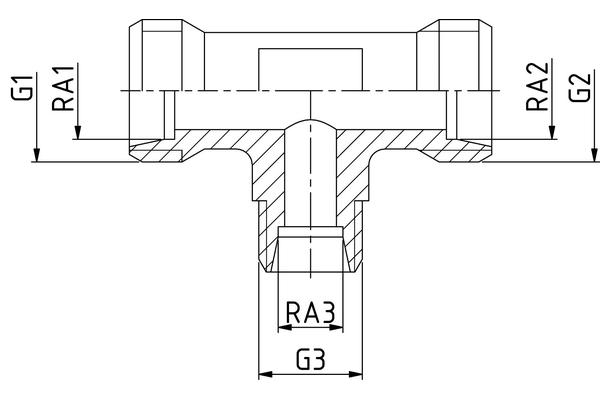

RV15/10/15TR-L/KÖ

Product info

• Technical data

  Working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe-Ø [R1] [mm]:	15
  Pipe-Ø [R2] [mm]:	15
  Pipe-Ø [R3] [mm]:	10
  Thread [G1]:	M22X1,5
  Thread [G2]:	M22X1,5
  Thread [G3]:	M16X1,5
  Series:	L
  Construction form:	T
