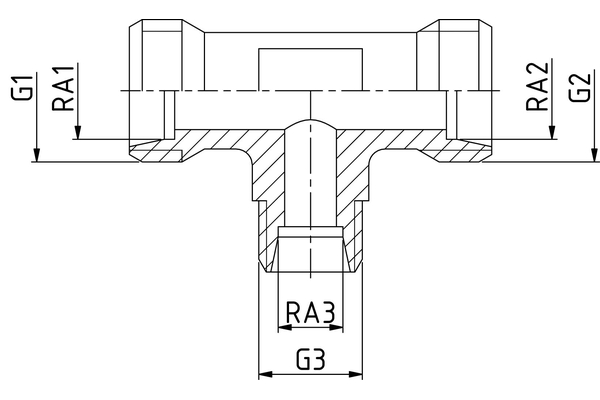

RV20/12/20TR-S/KÖ

Product info

• Technical data

  Working pressure [bar]:	400
  burst pressure [bar]:	1600
  Pipe-Ø [R1] [mm]:	20
  Pipe-Ø [R2] [mm]:	20
  Pipe-Ø [R3] [mm]:	12
  Thread [G1]:	M30x2,0
  Thread [G2]:	M30x2,0
  Thread [G3]:	M20x1,5
  Series:	S
  Construction form:	T
