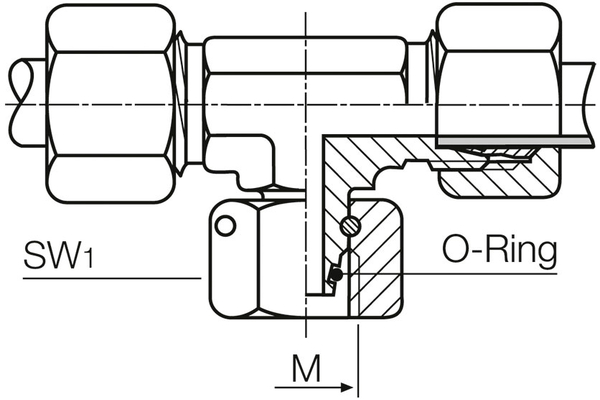

RV25ET/O-S
Adjustable screw connection ET/O

Product info

• Technical data

  Working pressure [bar]:	400
  Pipe Ø R [mm]:	25
  Thread [G1]:	M36x2
  Thread [G2]:	M36x2
  Thread [G3]:	M36x2
  Series:	S
  O-Ring 1:	20,3x2,4
  SW1 [mm]:	36
  SW2 [mm]:	46
  Thread [G]:	M36x2
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	T-shape
  Description:	Adjustable T-screw connection, preassembled, O-Ring sealing
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
