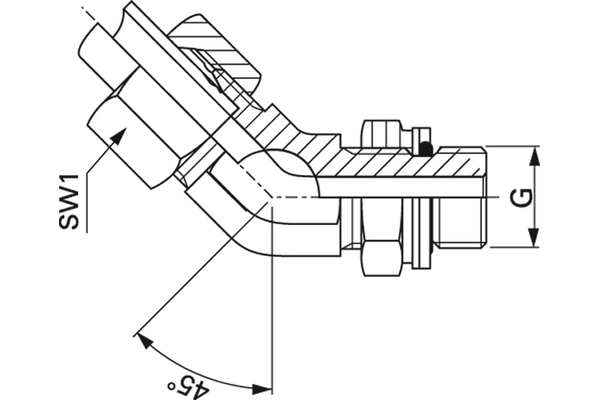

RV42WE45/O-LR
Adjustable elbow union WE 45/0 (inch)

Product info

• Technical data

  Working pressure [bar]:	160
  burst pressure [bar]:	640
  Pipe Ø R [mm]:	42
  Thread [G1]:	M52x2
  Thread [G2]:	G 1.1/2"
  Series:	L
  O-Ring 1:	44,04x3,53
  SW1 [mm]:	48
  SW2 [mm]:	60
  SW3 [mm]:	55
  Connection type 1:	Metric 24°
  Connection type 2:	Imperial
  Construction form:	Angle 45°
  Description:	Adjustable angle fitting 45 °, with O-ring and locknut
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
