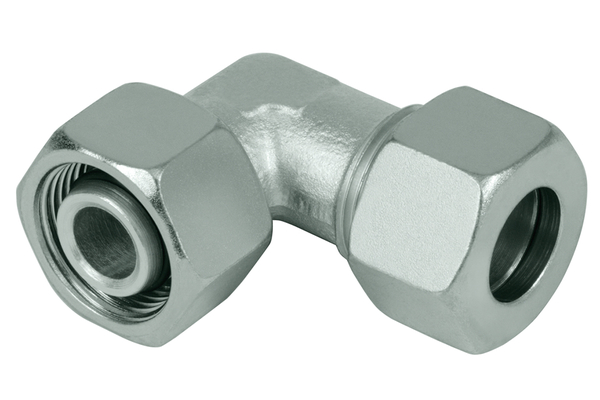

Adjustable union EW/O

Adjustable angle-screw connection with 24°-conical nipple and o-ring, metric

To accessories

Detail
Product info

Detail

Art. No.

RV35EW/O-L

RV06EW/O-S

RV08EW/O-S

RV10EW/O-S

RV12EW/O-S

RV14EW/O-S

Working pressure [bar]

160

630

burst pressure [bar]

640

2520

Pipe Ø R [mm]

Thread [G1]

M 45x2

M 14x1,5

M 16x1,5

M 18x1,5

M 20x1,5

M 22x1,5

Thread [G2]

M 45x2

M 14x1,5

M 16x1,5

M 18x1,5

M 20x1,5

M 22x1,5

Series

O-Ring 1

32,0 x 2,5

4,0 x 1,5

6,0 x 1,5

7,5 x 1,5

9,0 x 1,5

10,0 x 2,0

SW1 [mm]

SW2 [mm]

Thread [G]

M 45x2

M 14x1,5

M 16x1,5

M 18x1,5

M 20x1,5

M 22x1,5

Quantity

Product info

Technical data

Connection type 1:	Metric 24°
Connection type 2:	Metric 24°
Construction form:	Angle 90°
Description:	Adjustable angle screw connection with O-ring seal
Material:	ST-l
Resistance against red rust [h]:	1000
Resistance against white rust [h]:	500
Surface:	zinc plated, chrom 6-free
