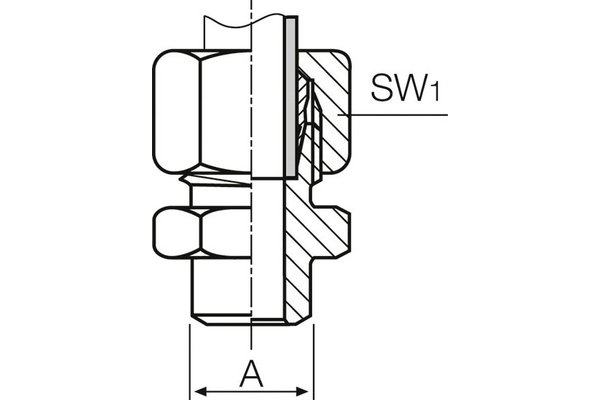

RV10AS-S
Weld union AS

Product info

• Technical data

  Working pressure [bar]:	630
  burst pressure [bar]:	2520
  Pipe Ø R [mm]:	10
  Thread [G1]:	M18x1,5
  Series:	S
  SW1 [mm]:	19
  SW2 [mm]:	22
  Thread [G]:	M18x1,5
  Connection type 1:	Metric 24°
  Connection type 2:	welded connection
  Construction form:	Straight
  Description:	Straight welded screw connection
  Material:	ST-l
  Surface:	zinc plated, chrom 6-free
