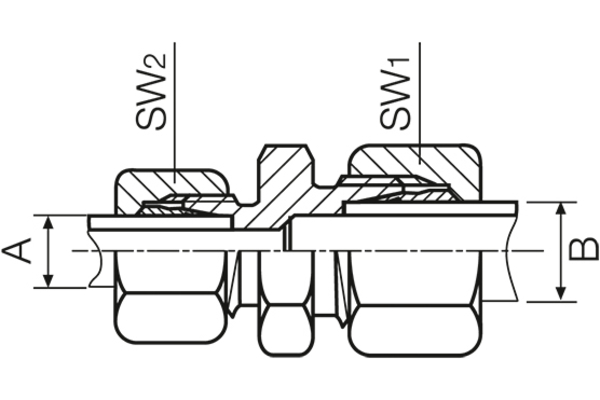

RV28GR22-L
Connection screw GR

Product info

• Technical data

  Working pressure [bar]:	160
  burst pressure [bar]:	640
  Pipe Ø R [mm]:	28/22
  Pipe-Ø [R1] [mm]:	28
  Pipe-Ø [R2] [mm]:	22
  Thread [G1]:	M36x2
  Thread [G2]:	M30x2
  Series:	L
  SW1 [mm]:	41
  SW2 [mm]:	36
  SW3 [mm]:	41
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	Straight
  Description:	Straight reducer
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
