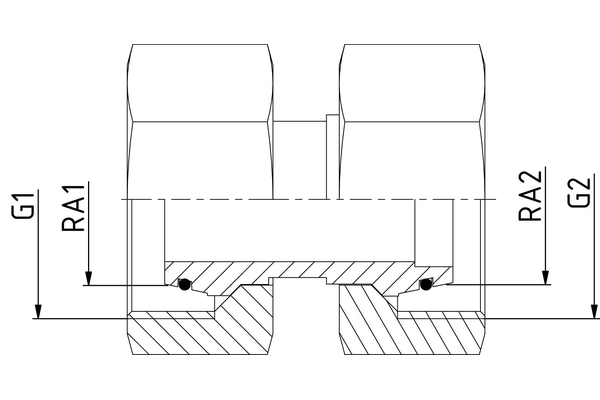

RV22L38S-GVO
Gerade Verbindungsverschraubung GVO (GZ/GZR)

Product info

• Technical data

  Working pressure [bar]:	250
  burst pressure [bar]:	1000
  Pipe Ø R [mm]:	22/38
  Pipe-Ø [R1] [mm]:	22
  Pipe-Ø [R2] [mm]:	38
  Thread [G1]:	M30x2
  Thread [G2]:	M52x2
  Series:	L/S
  O-Ring 2:	33,3 x 2,4
  O-Ring 1:	20,0 x 2,0
  Connection type 1:	Metrisch 24°
  Connection type 2:	Metrisch 24°
  Construction form:	Gerade
  Material:	Automatenstahl
  Surface:	ZnNi
