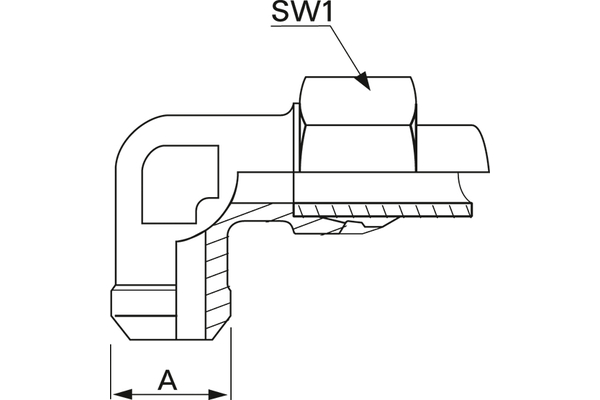

RV-W12AS-L
Weld union W/AS

Product info

• Technical data

  Working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	12
  Thread [G1]:	M18x1,5
  Series:	L
  SW1 [mm]:	17
  SW2 [mm]:	22
  Thread [G]:	M18x1,5
  Connection type 1:	Metric 24°
  Connection type 2:	welded connection
  Construction form:	Angle 90°
  Description:	Angle weld stud
  Material:	ST-l
  Surface:	zinc plated, chrom 6-free
