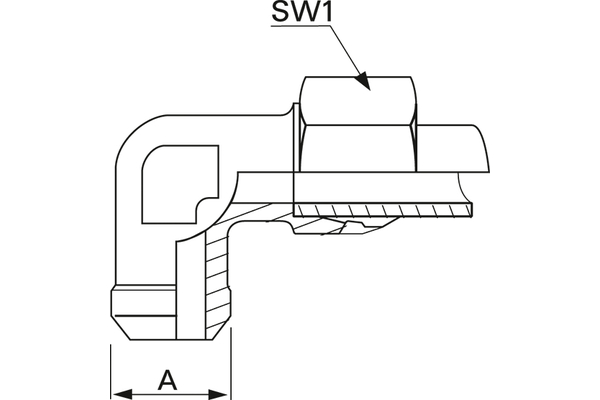

RV-W38AS-S
Weld union W/AS

Product info

• Technical data

  Working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	38
  Thread [G1]:	M52x2
  Series:	S
  SW1 [mm]:	50
  SW2 [mm]:	60
  Thread [G]:	M52x2
  Connection type 1:	Metric 24°
  Connection type 2:	welded connection
  Construction form:	Angle 90°
  Description:	Angle weld stud
  Material:	ST-l
  Surface:	zinc plated, chrom 6-free
