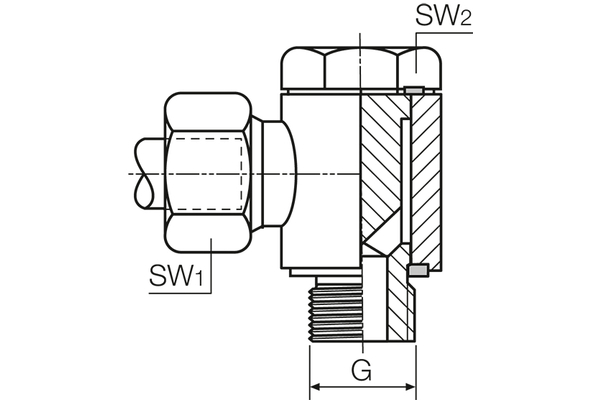

RV18WHO-LR
Swivel screw-fitting WHO (inch)

Product info

• Technical data

  Working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	18
  Thread [G1]:	M26x1,5
  Thread [G2]:	G 1/2"
  Series:	L
  SW1 [mm]:	36
  SW2 [mm]:	27
  SW3 [mm]:	32
  Connection type 1:	Metric 24°
  Connection type 2:	Imperial
  Construction form:	Angle 90°
  Description:	High pressure angle swivel fitting
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
