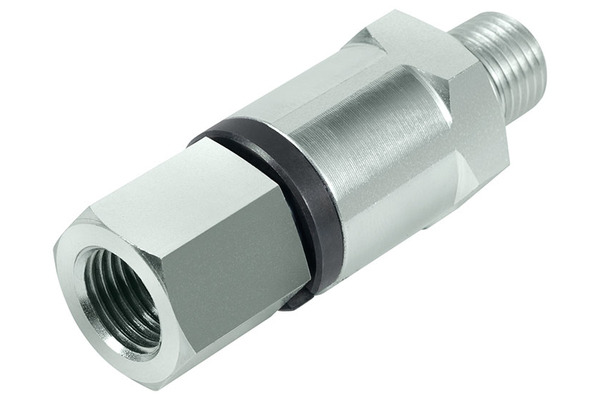

DGA-V2

Detail

DN
6
8
10
16
22
25
27
Size
4
6
8
12
16
20
24
inch
1/4
3/8
1/2
3/4
1
1.1/4
1.1/2
working pressure [bar]
350
350
350
350
350
350
315
thread + standard

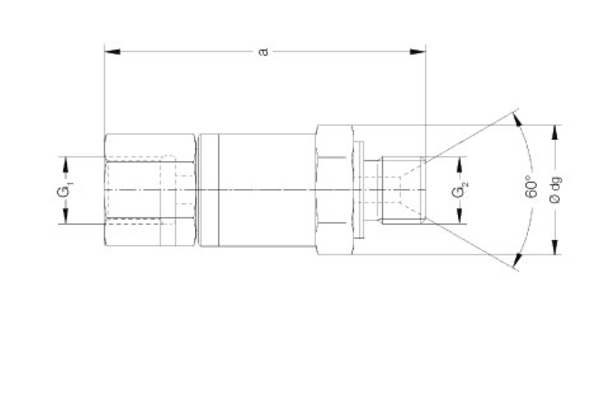

BSP internal thread to DIN 3852 T2 / BSP external thread to DIN 3852 T1 with 60 ° sealing cone (WD)
BSP internal thread to DIN 3852 T2 / BSP external thread to DIN 3852 T1 with 60 ° sealing cone (WD)
BSP internal thread to DIN 3852 T2 / BSP external thread to DIN 3852 T1 with 60 ° sealing cone (WD)
BSP internal thread to DIN 3852 T2 / BSP external thread to DIN 3852 T1 with 60 ° sealing cone (WD)
BSP internal thread to DIN 3852 T2 / BSP external thread to DIN 3852 T1 with 60 ° sealing cone (WD)
BSP internal thread to DIN 3852 T2 / BSP external thread to DIN 3852 T1 with 60 ° sealing cone (WD)
BSP internal thread to DIN 3852 T2 / BSP external thread to DIN 3852 T1 with 60 ° sealing cone (WD)
Thread 1
G 1/4
G 3/8
G 1/2
G 3/4
G 1
G 1.1/4
G 1.1/2
Thread 2
G 1/4
G 3/8
G 1/2
G 3/4
G 1
G 1.1/4
G 1.1/2
L [mm]
61,5
68
73,5
86,5
89,5
102,5
113
Free passage [cm²]
0,28
0,50
0,78
2,01
2,01
4,90
5,72
Diameter [mm]
22
30
30
41
41
60
60
Quantity


Product info

  • Specifications
    Bearing: Ball Bearing
    Material Casing: machining steel (9SMn28K)
    Material axle: chemically nickel plated
    Material sealing: FKM/PTFE
    Media: oil, water, air
    Rounds per minute [U/min]: Swivel & very slow rotation
    Surface: nickel-plated
    Temperature range [°C]: -20 °C / +120 °C (80 °C)

Accessories

Spare parts such as sealants are available on request. Please note our wide range of adapters to find the best suitable thread for your application.
