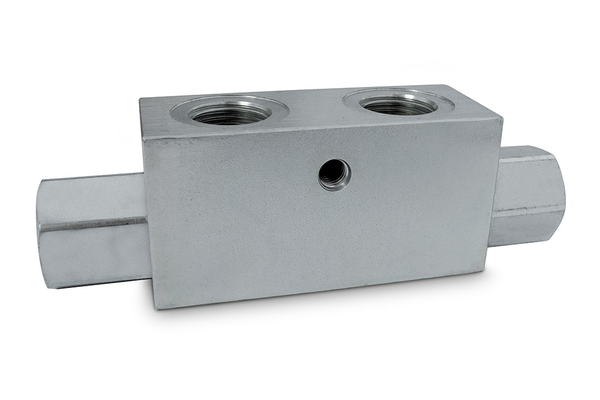

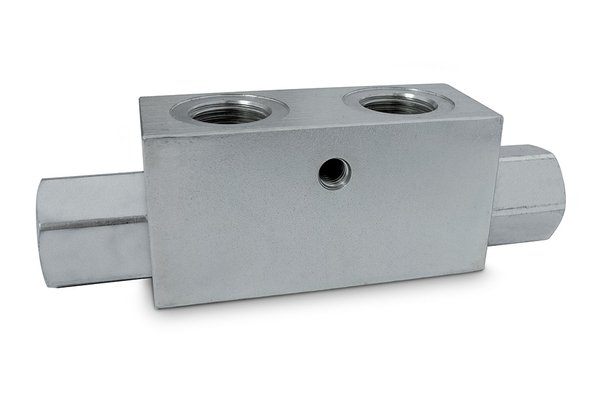

Double pilot operated check valve - RSV-DW

Similar image
Similar image
Similar image

Pilot check valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.

To accessories

Detail

Art. No.
RSV-DW-1/4-L
%
SALE
RSV-DW-3/8-L
%
SALE
RSV-DW-1/2-L
%
SALE
RSV-DW-3/8
%
SALE
RSV-DW-18L
%
SALE
RSV-DW-1/2
%
SALE
RSV-DW-3/4
%
SALE
working pressure [bar]
350
350
350
350
350
350
300
Thread + standard
G 1/4" L
G 3/8" L
G 1/2" L
G 3/8"
M18x1,5 L
G 1/2"
G 3/4"
Fastening thread
1/4" L
3/8" L
1/2" L
3/8"
M18x1,5 L
1/2"
3/4"
Weight [kg]
0,636
0,736
1,042
1,174
0,630
1,284
1,916

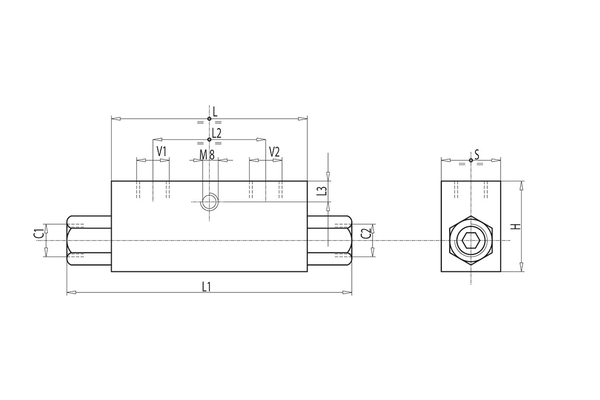

L1 [mm]
113
128
142
156
118
144
192
max flow [ltr / min]
20
35
50
45
35
70
100
Opening pressure [bar]
4
3
6
8
4
3,5
2
H [mm]
40
40
45
45
40
60
60
pilot ratio
1:5,5
1:5,5
1:5
1:5
1:5,5
1:4
1:4
V1-V2 C1-C2 [GAS - MET]
G 1/4" L
G 3/8" L
G 1/2" L
G 3/8"
M18x1,5 L
G 1/2"
G 3/4"
L [mm]
64
80
90
90
68
80
100
S [mm]
30
30
35
35
30
35
40
Quantity


Product info

  • Specifications

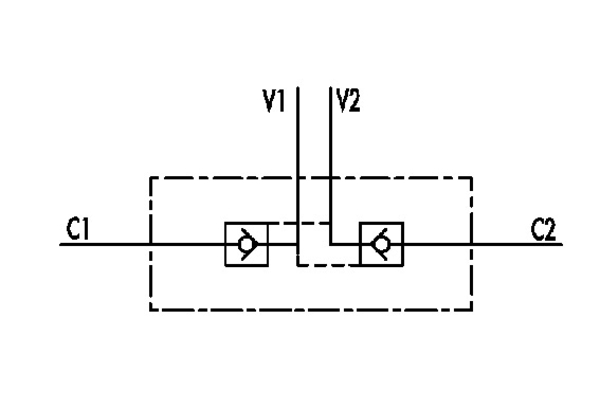

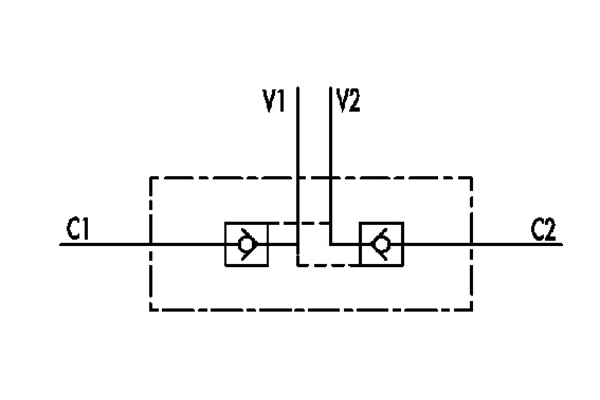

    Connection note: Connect V1 and V2 to the supply and C1 and C2 to the actuator.
    Material Casing: zinc plated steel
    Material sealing: BUNA N standard
