Product info
-
Specifications

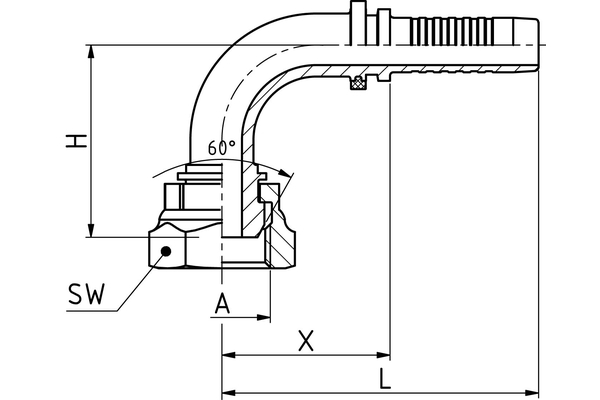

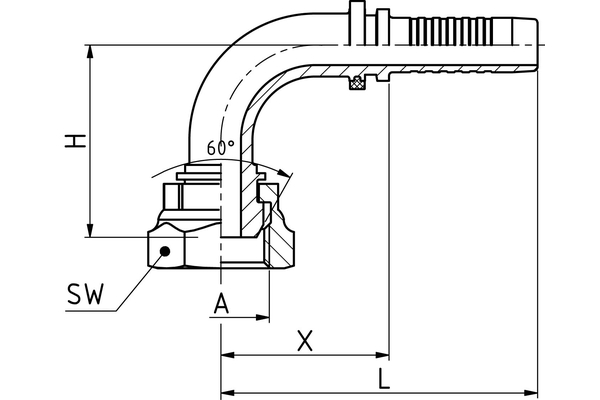

DN: 06 Size: 04 Inch: 1/4 Thread + standard: BSP sealing head, 60 ° cone with union nut, BSP thread Connection thread A: G 1/8" X [mm]: 23,0 L1 [mm]: 49,5 H [mm]: 26,0 SW1 [mm]: 17 Type of nut: CR Connection name Indunorm: BF 90° Connection type: DKR 90° Construction form: 90° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
