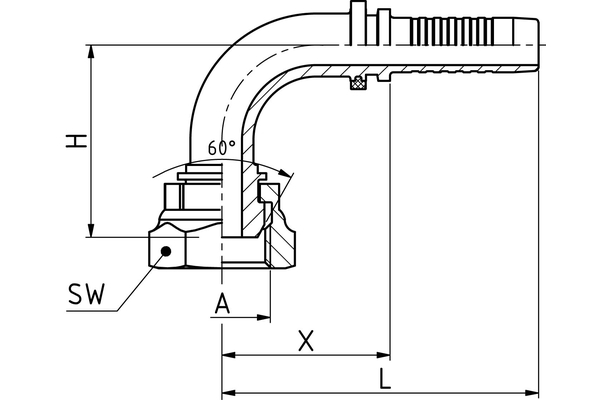

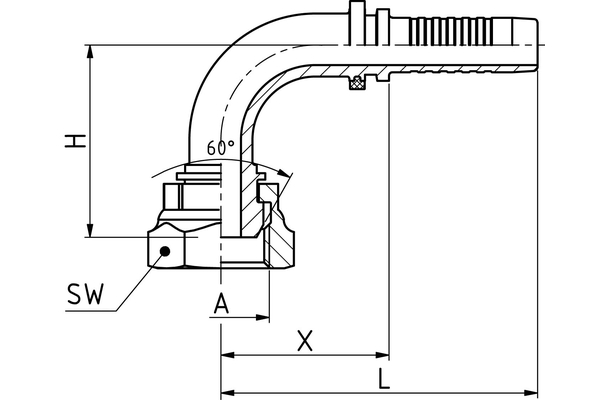

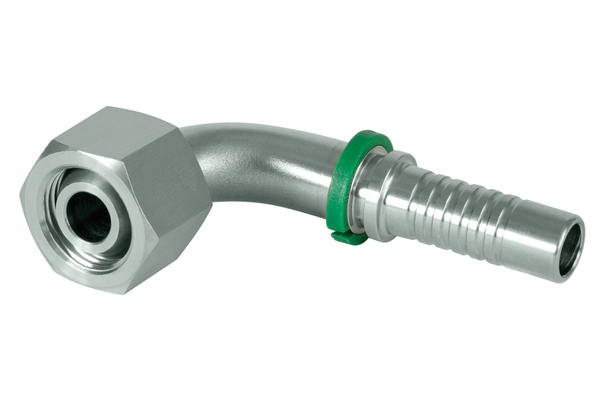

DKR 90°

BSP sealing head, 60 ° cone with union nut, BSP thread

To accessories

Detail
Product info

Detail

Art. No.

XV02B90S04

XV04B90S04

XV06B90S04

XV06B90S05

XV06B90S06

XV08B90S06

XV06B90S08

XV08B90S08

XV10B90S08

XV12B90S08

XV10B90S10

XV12B90S10

XV12B90S12

XV16B90S12

XV16B90S16

XV20B90S20

XV24B90S24

XV32B90S32

DN

06

08

10

12

16

19

25

31

38

51

Size

04

05

06

08

10

12

16

20

24

32

Inch

1/4

5/16

3/8

1/2

5/8

3/4

1

1.1/4

1.1/2

2

Thread + standard

BSP sealing head, 60 ° cone with union nut, BSP thread

Connection thread A

G 1/8"

G 1/4"

G 3/8"

G 1/2"

G 3/8"

G 1/2"

G 5/8"

G 3/4"

G 5/8"

G 3/4"

G 1"

G 1.1/4"

G 1.1/2"

G 2"

X [mm]

23,0

33,0

35,7

39,0

46,5

45,0

50,0

72,0

92,2

117,0

121,5

L1 [mm]

49,5

59,5

66,5

69,0

71,5

85,0

84,0

94,3

126,3

152,0

184,5

196,5

H [mm]

26,0

29,0

33,0

34,0

40,5

38,0

40,0

44,0

47,0

49,0

48,0

54,0

52,0

56,0

67,0

89,0

105,5

125,0

SW1 [mm]

17

19

22

27

22

27

30

32

30

32

41

50

55

70

Type of nut

CR

union nut

CR

ST

Quantity

Standard nominal sizes in bold

Product info

Specifications

Connection name Indunorm:	BF 90°
Connection type:	DKR 90°
Construction form:	90°
Material:	Free cutting steel
Resistance against red rust [h]:	144
Resistance against white rust [h]:	72
Surface:	galvanised and Cr III passivated
Type of fittings:	Universal series XV
