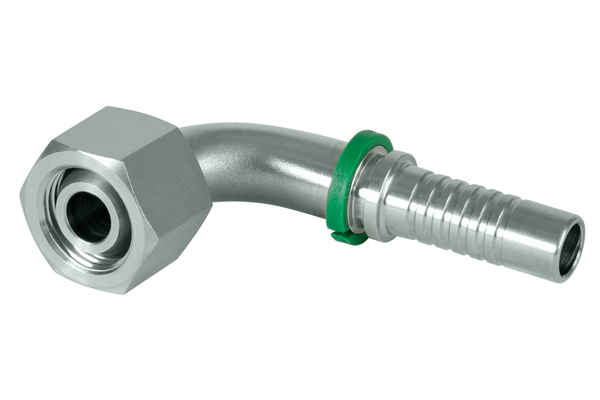

XV20B90S20
DKR 90° BF 90°

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 1.1/4"

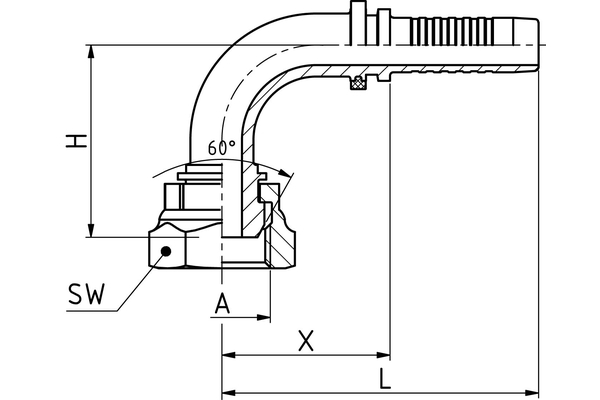

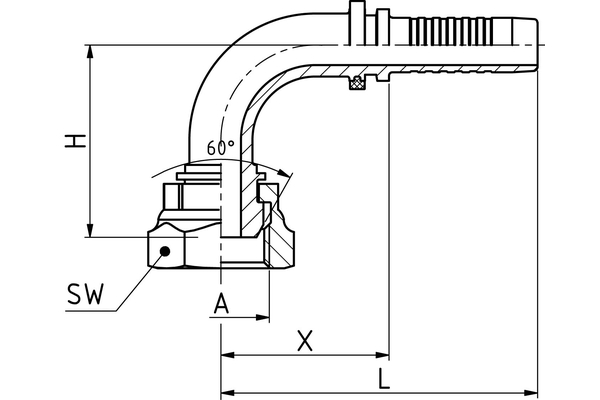

  X [mm]:	92,2
  L1 [mm]:	152,0
  H [mm]:	89,0
  SW1 [mm]:	50
  Type of nut:	ST
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
