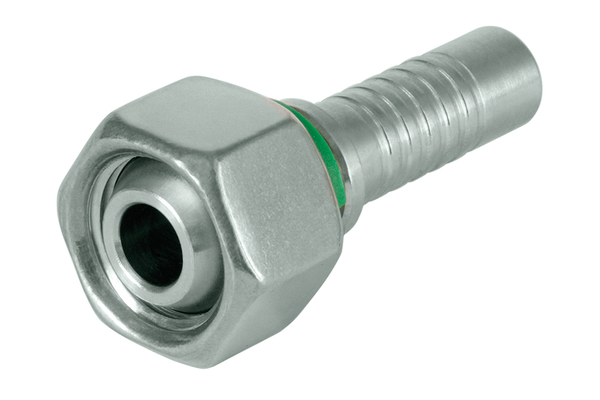

XV24BF24
DKR BF

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 1.1/2"

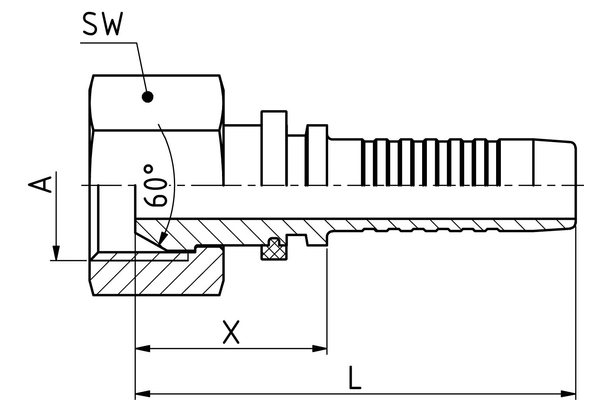

  X [mm]:	33,5
  L1 [mm]:	101,0
  SW1 [mm]:	55
  Type of nut:	CR
  Connection name Indunorm:	BF
  Connection type:	DKR
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
