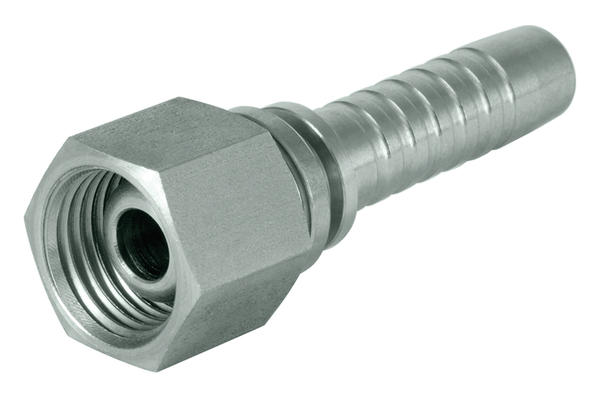

XV16MSF10-04
DKL MSF

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Sealing cone with union nut light series

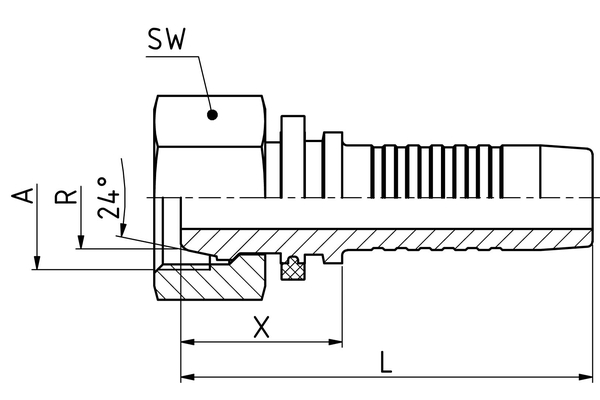

  Connection thread A:	M16x1,5
  Pipe Ø R [mm]:	10
  X [mm]:	25,8
  L1 [mm]:	56,0
  SW1 [mm]:	19
  Connection name Indunorm:	MSF
  Connection type:	DKL
  Construction form:	0°
  Material:	Free cutting steel
  Type of fittings:	Universal series XV
