DKL

Similar image
Similar image

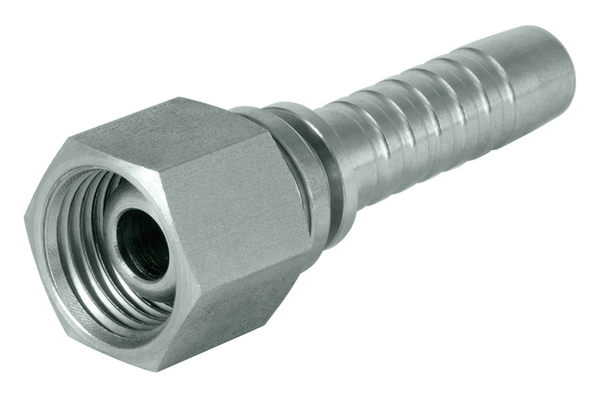

Sealing cone with union nut, light series

To accessories

Detail

Art. No.
XV12MSF06-03
%
SALE
XV12MSF06-04
%
SALE
XV14MSF08-04
%
SALE
XV16MSF10-04
%
SALE
XV18MSF12-04
%
SALE
XV16MSF10-05
%
SALE
XV18MSF12-05
%
SALE
XV16MSF10-06
%
SALE
XV18MSF12-06
%
SALE
XV22MSF15-06
%
SALE
XV22MSF15-08
%
SALE
XV26MSF18-08
%
SALE
XV22MSF15-10
%
SALE
XV26MSF18-10
%
SALE
XV30MSF22-12
%
SALE
XV36MSF28-16
%
SALE
XV45MSF35-20
%
SALE
XV52MSF42-24
%
SALE
DN
05
06
06
06
06
08
08
10
10
10
12
12
16
16
19
25
31
38
Size
03
04
04
04
04
05
05
06
06
06
08
08
10
10
12
16
20
24
Inch
3/16
1/4
1/4
1/4
1/4
5/16
5/16
3/8
3/8
3/8
1/2
1/2
5/8
5/8
3/4
1
1.1/4
1.1/2
Thread + standard
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Sealing cone with union nut light series
Connection thread A
M12x1,5
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M16x1,5
M18x1,5
M16x1,5
M18x1,5
M22x1,5
M22x1,5
M26x1,5
M22x1,5
M26x1,5
M30x2,0
M36x2,0
M45x2,0
M52x2,0
Pipe Ø R [mm]
6
6
8
10
12
10
12
10
12
15
15
18
15
18
22
28
35
42

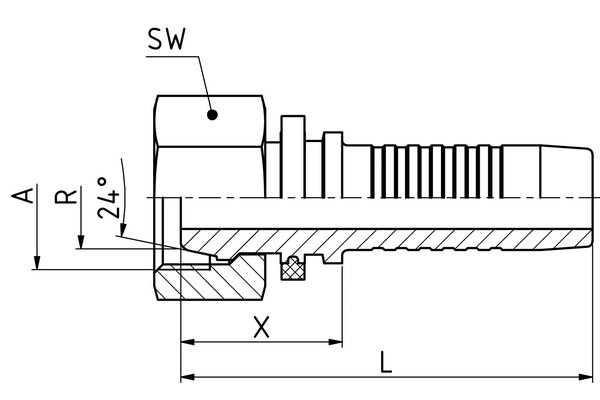

X [mm]
22,8
18,3
24,8
25,8
26,3
25,8
27,3
18,8
26,5
24,8
26,5
26,5
35,5
27,5
32,7
35,1
38,0
38,2
L1 [mm]
47,7
48,5
55,0
56,0
56,5
56,0
57,5
52,3
60,0
58,3
62,0
62,0
74,0
66,0
78,7
90,3
98,0
105,9
SW1 [mm]
14
17
17
19
22
19
22
19
22
27
27
32
27
32
36
41
50
60
Quantity


Standard nominal sizes in bold

Product info

  • Specifications
    Connection name Indunorm: MSF
    Connection type: DKL
    Construction form: 0°
    Material: Free cutting steel
    Surface: Cr3
    Type of fittings: Universal series XV

Benefit

Well-suited for high temperatures and for corrosive media duet to metallic sealing.
