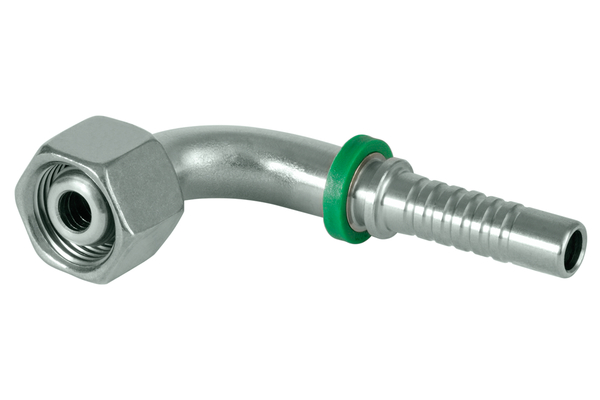

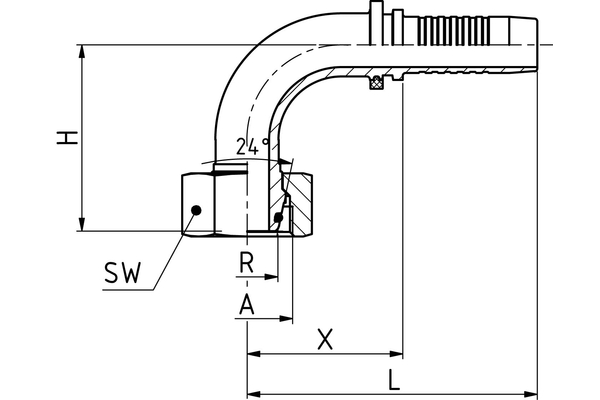

DKOL 90°

Similar image
Similar image

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut, light series

To accessories

Detail

Art. No.
XV12MSOF06-90S03
%
SALE
XV12MSOF06-90S04
%
SALE
XV14MSOF08-90S04
%
SALE
XV16MSOF10-90S04
%
SALE
XV18MSOF12-90S04
%
SALE
XV14MSOF08-90S05
%
SALE
XV16MSOF10-90S05
%
SALE
XV18MSOF12-90S05
%
SALE
XV16MSOF10-90S06
%
SALE
XV18MSOF12-90S06
%
SALE
XV22MSOF15-90S06
%
SALE
XV18MSOF12-90S08
%
SALE
XV22MSOF15-90S08
%
SALE
XV26MSOF18-90S08
%
SALE
XV22MSOF15-90S10
%
SALE
XV26MSOF18-90S10
%
SALE
XV30MSOF22-90S10
%
SALE
XV26MSOF18-90S12
%
SALE
XV30MSOF22-90S12
%
SALE
XV36MSOF28-90S12
%
SALE
XV30MSOF22-90S16
%
SALE
XV36MSOF28-90S16
%
SALE
XV45MSOF35-90S16
%
SALE
XV36MSOF28-90S20
%
SALE
XV45MSOF35-90S20
%
SALE
XV45MSOF35-90S24
%
SALE
XV52MSOF42-90S24
%
SALE
DN
05
06
06
06
06
08
08
08
10
10
10
12
12
12
16
16
16
19
19
19
25
25
25
31
31
38
38
Size
03
04
04
04
04
05
05
05
06
06
06
08
08
08
10
10
10
12
12
12
16
16
16
20
20
24
24
Inch
3/16
1/4
1/4
1/4
1/4
5/16
5/16
5/16
3/8
3/8
3/8
1/2
1/2
1/2
5/8
5/8
5/8
3/4
3/4
3/4
1
1
1
1.1/4
1.1/4
1.1/2
1.1/2
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Connection thread A
M12x1,5
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M14x1,5
M16x1,5
M18x1,5
M16x1,5
M18x1,5
M22x1,5
M18x1,5
M22x1,5
M26x1,5
M22x1,5
M26x1,5
M30x2
M26x1,5
M30x2
M36x2
M30x2
M36x2
M45x2
M36x2
M45x2
M45x2
M52x2

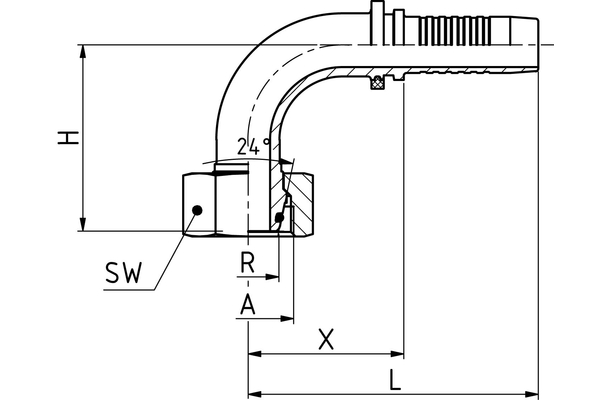

Pipe Ø R [mm]
6
6
8
10
12
8
10
12
10
12
15
12
15
18
15
18
22
18
22
28
22
28
35
28
35
35
42
X [mm]
23,5
25,0
29,5
31,0
30,5
31,0
31,0
31,0
38,5
37,5
39,0
39,0
40,7
55,5
46,5
46,0
61,5
55,0
57,5
62,0
63,0
72,0
73,0
75,5
90,7
93,5
101,0
L1 [mm]
48,0
55,0
59,5
61,0
60,5
61,0
61,0
61,0
71,5
71,0
72,5
72,5
76,0
91,0
85,0
84,0
100,0
101,0
103,0
108,0
118,0
127,0
128,0
135,5
150,5
161,0
168,5
H [mm]
27,0
32,5
29,0
31,5
33,0
35,5
31,5
33,0
39,0
36,0
38,5
38,5
42,0
54,0
44,5
53,5
61,0
54,0
57,0
61,0
61,0
63,0
73,0
85,0
81,0
91,0
88,0
Outer diameter O-ring [mm]
5
5
7
9
11
7
9
11
9
11
12
11
12
16
12
16
20
16
20
26
20
26
32
26
32
32
38
Height O-ring [mm]
1,5
1,5
1,5
1,5
1,5
1,5
1,5
1,5
1,5
1,5
2,0
1,5
2,0
2,0
2,0
2,0
2,0
2,0
2,0
2,0
2,0
2,0
2,5
2,0
2,5
2,5
2,5
SW1 [mm]
14
14
17
19
22
17
19
22
19
22
27
22
27
32
27
32
36
32
36
36
41
50
41
50
50
60
Type of nut
union nut
-
union nut
union nut
union nut
-
union nut
union nut
-
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
union nut
Quantity


Standard nominal sizes in bold

Product info

  • Specifications
    Connection name Indunorm: MSOF 90°
    Connection type: DKM 90°
    Construction form: 90°
    Material: Free cutting steel
    Material O-Ring: NBR 70
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Universal series XV

Practical tip

At higher temperatures, the NBR O-ring can be replaced easily by a Viton O-ring, see XV-SET OR Rohr..L / SV.
